Trailer Mounted Water Well Drilling Rigs

Trailer-mounted water well-drilling rigs, also called truck, or tractor-mounted water well-drilling rigs, and portable water well drilling rigs the kind of drilling rig with almost the highest working efficiency. With hydraulic power, our trailer-mounted water well drilling rigs are excellent in performance and productivity. And the trailer design makes it easy to move around. The drilling depth of out mount water well drilling rig ups to 600m, and the opening hole diameter can be 500mm. Unlike some small hydraulic water well drilling rigs, you can use this trailer-type drilling rig to drill both soft soil and hard rock. In addition, we also have pile driver machines, anchor drill rigs, hydraulic core drill machines, backpack core drill machines, DTH drilling rigs, and rock drill machines. For more details please email us.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Trailer Mounted Water Well Drilling Rigs

XYX-3 Hydraulic Water Well Drilling Rig
Truck Mounted Water Well Drilling Rig
Trailer Water Well Drilling Equipment
Trailer Drilling Rig for Sale
XYC SeriesTractor Mounted Water Well Drilling Rig
XYX-3 Hydraulic Water Well Drilling Rig Truck Mounted Water Well Drilling Rig Trailer Water Well Drilling Equipment Trailer Drilling Rig for Sale XYC SeriesTractor Mounted Water Well Drilling Rig

Request A Quote

XYX-3 Trailer Mounted Water Well Drilling Rigs for Sale

XYX-3 is a kind of drilling rig which is a combination of a four-wheel trailer and the drill rig body. Hydraulic power maximizes the drilling efficiency of this portable water well and core drilling rig. You can use it for getting samples underground and drilling water wells. The trailer type allows you to move it around conveniently. Please check the parameter below to confirm the details.

Trailer Mounted Water Well Drilling Rigs

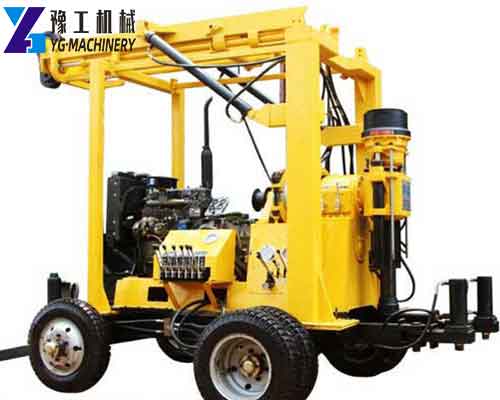

XYX-3 Trailer Water Well Drilling Rig

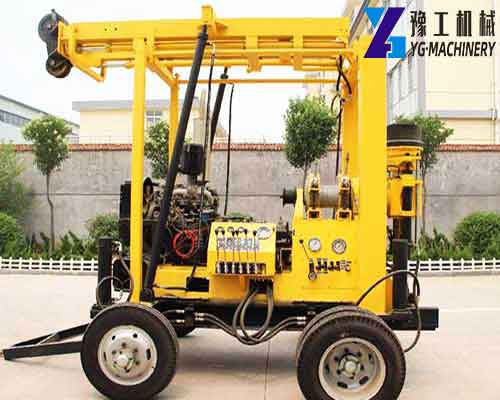

XYX-3 Water Well Drilling Rig

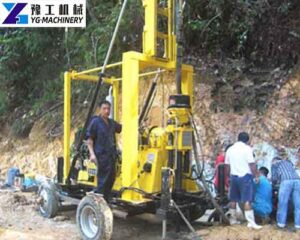

Trailer Mounted Water Well Drilling Rig

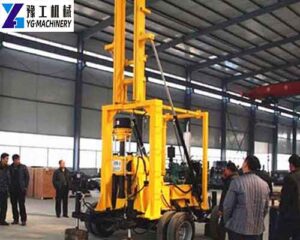

Trailer Water Well Drilling Rig
XYX-3 Trailer Water Well Drilling Rig XYX-3 Water Well Drilling Rig Trailer Mounted Water Well Drilling Rig Trailer Water Well Drilling Rig

XYX-3 Trailer Mounted Water Well Drilling Rigs for Sale
Model XYX-3 Trailer Mounted Water Well Drilling Rigs
Drilling Depth (m) 600
Opening Hole Diameter (mm) 325
End Hole Diameter (mm) 75
Drill Angle (0) 90-75
Matching Power (kW) YN27/39
Weight Without Power (kg) 3600
Dimension (mm) 2900*2560*3300
Vertical Shaft
Speed (r/min) 32-1057
Stroke (mm) 600
Winch
Max. Pull Force (kg) 3000
Pull Speed (m/s) 0.3-1.9
Rope Diameter (mm) 12.5
Roll Capacity (m) 65
Drill Mast
Rated Load (t) 18
Height (m) 6.5
Mud Pump
Mud Pump BW-250
Working Pressure 80kg/m3
Displacement (L/min) 250
Hose
Inlet Hose Diameter(mm) 76
Outlet Hose Diameter(mm) 51

Request A Quote

XYC Series Tractor Mounted Water Well Drilling Rigs for Sale

XYC SeriesTractor Mounted Water Well Drilling Rig
XYC SeriesTractor Mounted Water Well Drilling Rig
Model XYC-130A XYC-180A XYC-200A
Drilling Depth 130m 180m 200m
Opening Hole Dia. 220mm 180mm 200mm
End Hole Dia. 75 75 75
Drill Rod Dia. 42-60 42-60 42-60
Drill Angle 90-750 90-750 90-750
Power 13.2kw 13.2kw 13.2kw
Weight 2750kg 2800kg 3000kg
Dimension 4*1.7*2.3m 4*1.7*2.3m 4*1.7*2.3m
Spindle Speed 142/285/570r/min 130/300/480/830/1045r/min 64/128/287/557r/min
Spindle Stroke 450mm 450mm 450mm
Tractor Model 7YP-1475DI 7YP-1475DI 7YP-1475DI
Tractor Emission Standard GB-19756-2005(II) GB-19756-2005(II) GB-19756-2005(II)
Tractor Rated Power 18.3kw 18.3kw 18.3kw
Tractor Rated Speed 2200r/min 2200r/min 2200r/min
Drill Mast-Rated Load 18T 18T 18T
Drill Mast Height 6.5m 6.5m 6.5m
Mud Pump Displacement 160L/min 160L/min 160L/min
Mud Pump Max. Pressure 1.3Mpa 1.3Mpa 1.3Mpa
Mud Pump Reciprocating 165times/min 165times/min 165times/min
Inlet Hose Dia. 51mm 51mm 51mm
Outlet Hose Dia. 32mm 32mm 32mm

Request A Quote

Six Top Features of XYC-200GT Tractor Mounted Water Drilling Rig

  1. The XYC Series is a vertical shaft rotary drilling rig, XYC-130A/180A/200A for you to choose from.
  2. BW-160 or BW-250 mud pump enables the tractor-mounted water well drilling rig with high pressure, large flow, and required drilling depth and opening hole diameter.
  3. Equipped with a moveable system that allows the truck-mounted water drilling rig to move back and forth easily.
  4. The drill mast can lift automatically which is easy and safe in operation.
  5. The mud pump is designed in the chassis of the truck which makes the whole machine integrated.
  6. You can use this machine in geotechnical exploration, building detection, foundation construction, water well drilling, etc.

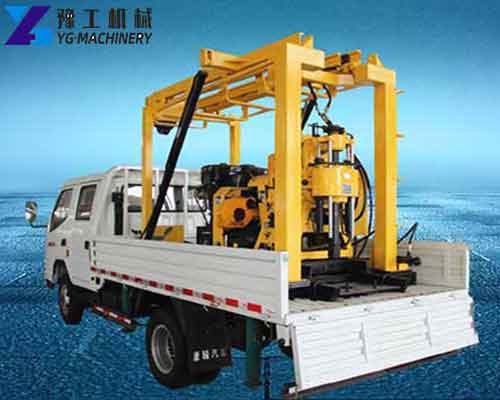

XYC-200GT Truck Mounted Water Well Drilling Rigs for Sale

XYC-200GT truck-mounted water well drilling rigs for sale in YG Machinery is a kind of drilling rig designed for outdoor drilling that is high in speed and efficiency. This drilling rig gas is a very wide application. You can email us for more details if you are interested.

Truck Mounted Water Well Drilling Rig
Truck Mounted Water Well Drilling Rig

Model: XYC-200GT Truck Mounted Water Rig
Drilling Depth: 30-200m
Opening Hole Dia.: 300-75mm
Drill Angle: 90-750
Spindle Speed: 64-557r/min
Spindle Stroke: 450mm
Max. Pull Force: 1600kg
Drill Mast Height: 6500mm
Diesel Engine: ZS1115 14.7kw/2200rpm
Mud Pump: BW-160
Rig Weight: 970kg
Request A Quote

HY-400 Trailer Mounted Water Well Drilling Rigs for Sale

HY-400 trailer-mounted water well drilling rigs for sale in YG Machinery is a kind of hot sale drilling rig model. If you want to buy a trailer-mounted water well drilling rig for doing rental business or water well drilling business or self-use, this one would be a good choice. Contact us for more if you need the price.

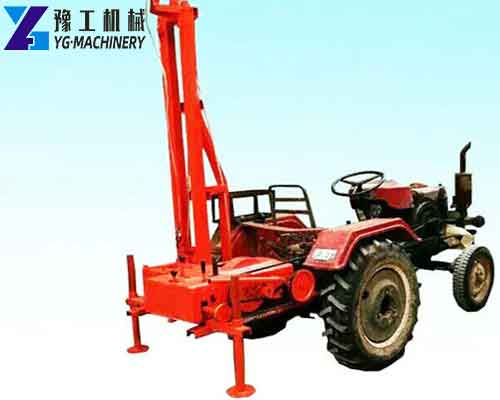

Trailer Drilling Rig for Sale
Trailer Drilling Rig for Sale


Model: HY-400
Drill Pipe Diameter: Φ51 mm;Φ60 mm
Drill Pipe Length: 2m
Diesel Motor Power: 12.1kw
Drilling depth: 60m
Water Pump Flow: 72m3/h
Drilling Hole Diameter: 0-400mm
Lifting Force: 1000kg
Lifting height: 3m
Weight: 110kg
Dimension: 1000mm*1200mm
Request A Quote

HY-500 Tractor Mounted Water Well Drilling Rigs for Sale

HY-500 tractor-mounted water well drilling rigs for sale are another type of hydraulic water well drilling rig. You can buy the water rig alone or buy it with the tractor. Stable performance and high efficiency make it popular. Check the parameter below and request a quote if you need a price list.

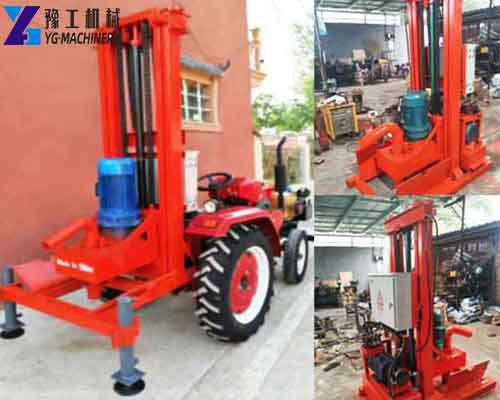

Trailer Water Well Drilling Equipment
Trailer Water Well Drilling Equipment


Model: HY-500
Drill Hole Depth: 120m
Max. Opening Hole Diameter: 0-500mm
Drill Pipe Diameter: φ65mm, 2m
Lifting Force: 1000kg
Motor Power: 5.5kw
Pump Power: 5.5kw
Voltage: 380V
Size: 1000mm*1500mm*2000mm
Weight: 600kg
Request A Quote

These five types of trailer-mounted water well drilling rigs are quite popular among our customers. If you want to know more about small water well-drilling rigs, core drilling equipment, DTH drilling rigs, rock drill machines, diamond core drill machines, backpack core drill machines, crawler anchor drill machines, rotary drilling rigs, and horizontal directional drilling rigs. please click on the page to check the detailed parameters.

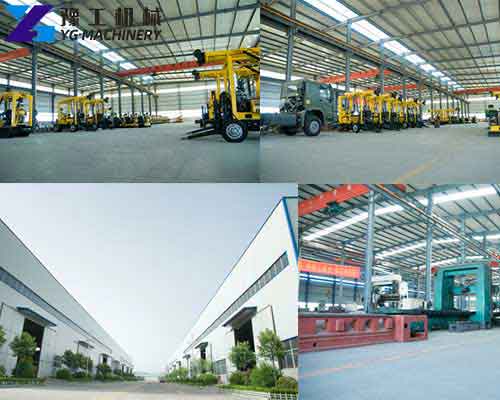

YG Machinery Factory
