Trailer Mounted Water Well Drilling Rigs for Sale

XYX-3 is a kind of trailer-mounted water well drilling rig and core drill equipment that can meet your needs for shallow or medium-depth hole drilling. And the main use of the XYX-3 trailer-mounted water well-drilling rigs for sale in YG Machinery is diamond drilling. As a spindle core water well and core drilling machine, the engine of the drilling rig can be equipped with an electric motor or diesel motor. With a simple structure and easy operation system, the XYX-3 trailer-mounted water well drill rig wins its market among our domestic and foreign customers in America, Honduras, South Africa, Sri Lanka, Bolivia, Pakistan, Ghana, Pakistan, Afghanistan, Norway, Australia, Philippines, Chile, Ethiopia, Mexico, Qatar, Vietnam, etc. Also, we have small water well drilling rigs, core drilling rigs, anchor drill machines, pile driver machines, backpack core drills, DTH drilling rigs, rock drilling rigs, and diamond core drill machines, to suit the different clients.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Request A Quote

Trailer Mounted Water Well Drilling Rigs

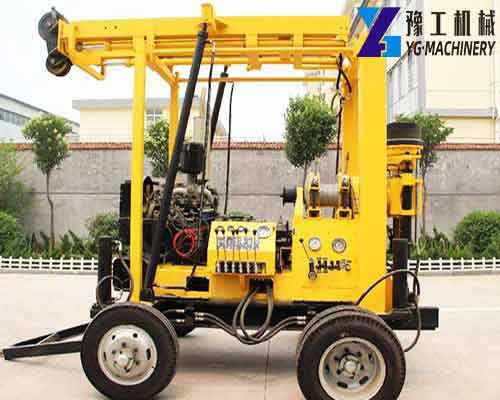

XYX-3 Trailer Water Well Drilling Rig

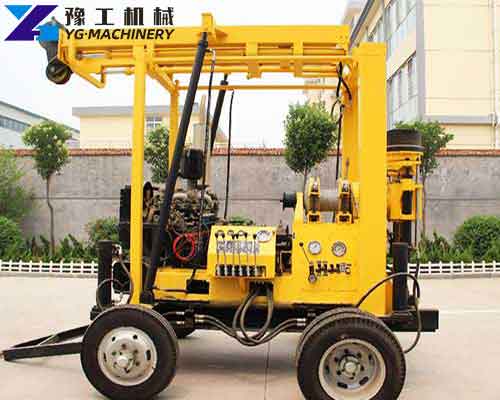

XYX-3 Water Well Drilling Rig
Trailer Mounted Water Well Drilling Rig
Trailer Water Well Drilling Rig
XYX-3 Trailer Water Well Drilling Rig XYX-3 Water Well Drilling Rig Trailer Mounted Water Well Drilling Rig Trailer Water Well Drilling Rig

Request A Quote

Technical Parameter of XYX-3 Trailer Mounted Water Well Drilling Rig

Whole Drilling Rig Parameter

Drilling Depth 600m
Max. Open Hole Diameter 300mm
End Hole Diameter 75mm
Drilling Rod Diameter 60mm
Drilling Angle 900-650

Vertical Shaft

Speed Forward 30-1050r/min  Backward 29-137r/min
Stroke 560mm
Inner Diameter 96mm
Lifting Capacity 60KN

Main Winch

Max. Pull Capacity 40KN
Max. Pull Speed 0-45m/min
Wire Rope Diameter 14mm
Wire Rope Length 30m
Hug Tollgate Belt Width 90mm

Minor Winch

Reel Diameter 140mm
Wire Rope Diameter 6mm
Wire Rope Length 450m

Mud Pump

Type Horizontal Triplex BW-250 mud pump
Displacement 250 L/min
Work Pressure 7 Mpa
Water Inlet Pipe Diameter 75mm
Water Outlet Pipe Diameter 50mm

Gear Oil Pump

Duplex Gear Oil Pump CBF-F63/25
Front Displacement and Pressure 63 L/min   20Mpa
Back Displacement and Pressure 25 L/min   20Mpa

Power

Diesel Engine 37KW

Wheel Undercarriage

Chassis Loading 3T
Chassis Length 2.6m
Chassis Width 2m
Max. High Crawler 0.6m

Drill Mast

Rated Load 18T
Height 6.5m

Ten Outstanding Features of XYX-3 Trailer Mounted Water Well Drilling Rigs

  1. Equipped with a hydraulic high outrigger which makes the water well drilling machine easy-detached, easy to transport, and stable support.
  2. An automatic drill mast lifting system ensures safety and maximizes users’ benefits.
  3. Hydraulic oil pressure feed device which highly improves the drilling efficiency.
  4. A smart pressure gauge enables you to deserve the condition of the deep drilling hole.
  5. The diesel engine provides enormous power for borehole drilling.
  6. Lightweight, easy operation, detachment-friendly, and low maintenance rate.
  7. Soft soil and hard rock are easy to work on under this drilling rig.
  8. Wide applications and excellent performance in every drilling condition.
  9. Two-year warranty.
  10. Complete after-sales services system and lifelong technical help.

Wide Applications of XYX-3 Water Well Drilling Machine

  1. Outdoor geotechnical exploration.
  2. Hydropower project.
  3. Road, railway, highway, port, and bridge construction.
  4. Water well drilling.
  5. Building project.
