Core Drill Rig

The core drilling rig is one common type of drilling rig which is often used for water drilling, geothermal drilling, geotechnical exploration, coal mining, soil boring, gold drilling, etc. So the core drill rig is also known as exploration drilling rig, geotechnical drilling rig, mining drilling machine, soil boring machine, core sample drilling equipment, water well core drilling rig, gold drilling machine, and site investigation drilling machine. Here in YG, you can find so many types of core drilling equipment. And I will present only four hot sellers among our customers for you to choose from. You can choose the right machine according to your required application site, drilling depth, and opening hole diameter.

Core Drill Rig

Core Machine for Sale
XYX-3 Core Drill Rig
XYD-3 Core Drilling Rig for Sale
XY-3 Core Drilling
HZ Core Drilling Rig
Core Machine for Sale XYX-3 Core Drill Rig XYD-3 Core Drilling Rig for Sale XY-3 Core Drilling HZ Core Drilling Rig

Request A Quote

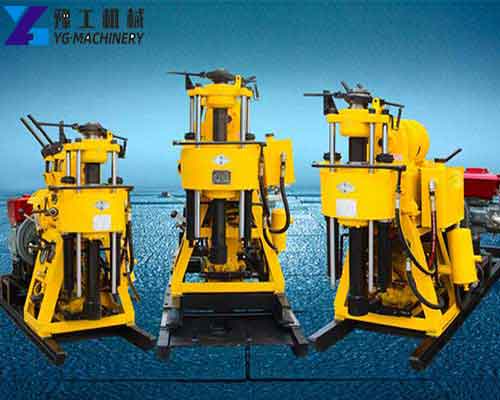

HZ-130Y/180Y/200Y Core Drill Rig for Sale

HZ type core drilling equipment is a kind of wide-application drilling rig. You can use it in the geological exploration of the railway, water conservancy, bridge, dam foundation, etc. And you can also apply it in core sample drilling, small grouting hole drilling, blasting hole drilling, and water core drilling. And we can equip the HZ type rock core drilling machine with diamond drilling bits, composite drilling sheets, and alloy drill bits according to your particular need.

Core Drill Rig Detail

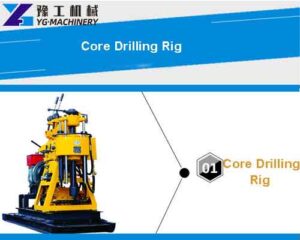

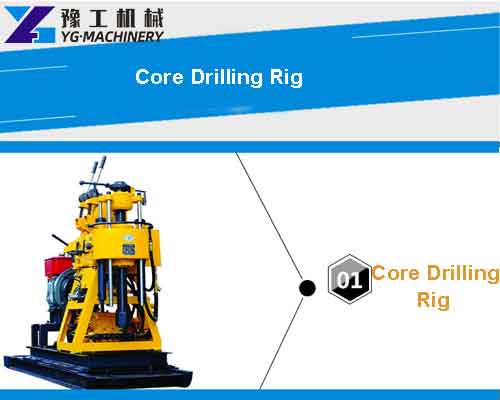

Core Drill Rig

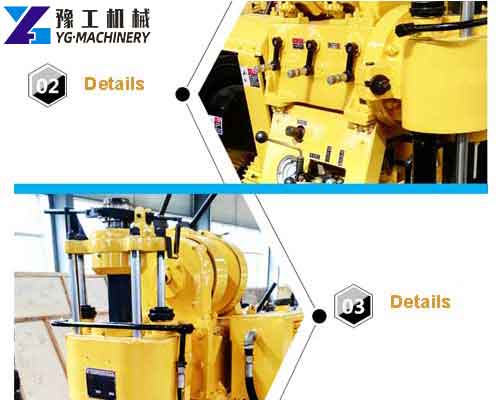

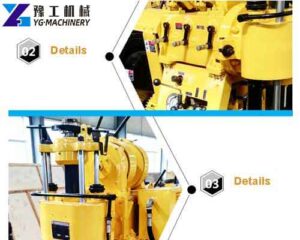

Coring Machine for Sale

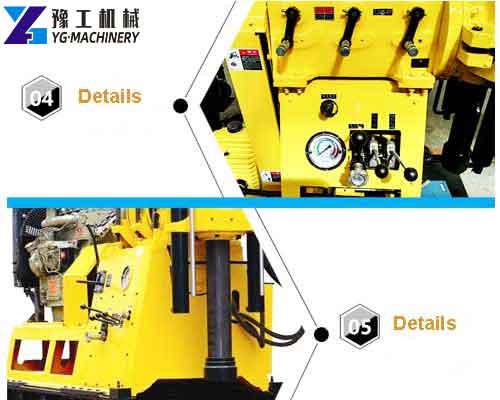

Core Drilling Equipment Details

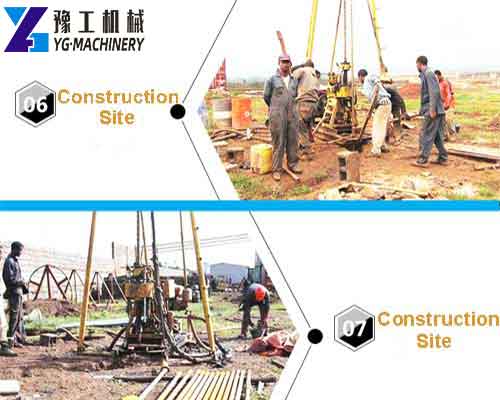

Core Drilling Rig Construction Site

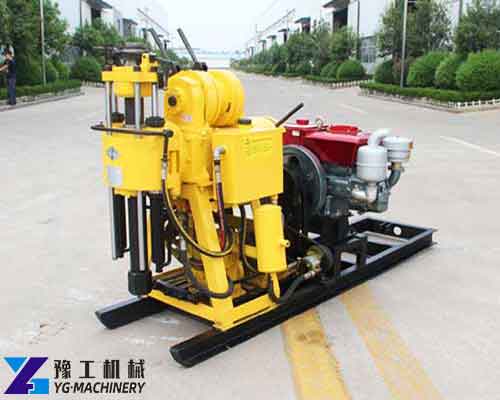

Core Drilling Equipment for Sale

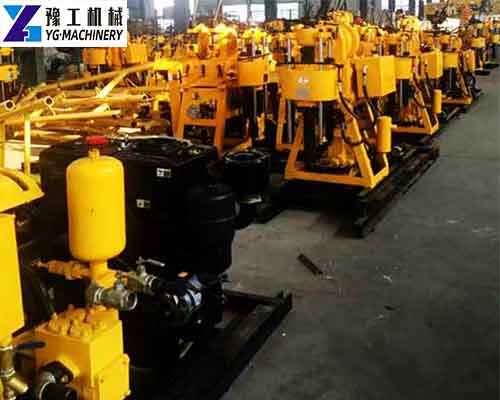

Core Drill Rig Manufacturer
Core Drill Rig Coring Machine for Sale Core Drilling Equipment Details Core Drilling Rig Construction Site Core Drilling Equipment for Sale Core Drill Rig Manufacturer

Request A Quote

Technical Parameter of the HZ Type Rock Core Drilling Equipment

Model HZ-130Y/130YY HZ-180Y/180YY HZ-200Y/200YY
Drilling Depth (m) 130 180 200
Open Drilling Diameter (mm) 220 220 325
Final Hole Diameter(mm) 75 75 75
Drill Pipe Diameter(mm) 42-60 42-60 42-60
Drill Pipe Inclination (°) 90-75 90-75 90-75
Power (kw) 13.2 13.2 14.7
Weight (kg) 920 950 1150
Dimensions(mm) 2400*950*1400 2400*950*1400 2700*950*1770

XY-3 Core Drill Rig for Sale

XY-3 core drilling machine is equipped with the newest MW525 heavy truck transmission and diamond drill bits which enable this drilling rig to have a wide range of applications. You can use this rig to drill water well and geological exploration. To meet the requirements of the market, we design three types of XY-3 rock core drilling rig which respectively are crawler core drilling equipment, truck-, trailer-, and tractor-mounted core drilling equipment, and walking core drilling equipment. The automatic hydraulic drill mast in this rig is safe to lift which greatly reduce the labor and improve benefits.

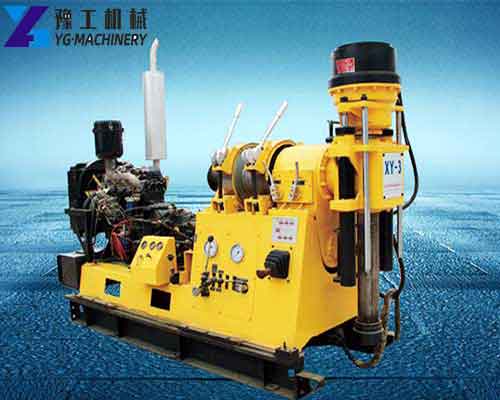

XY-3 Core Drilling
XY-3 Core Drilling


Model: XY-3
Drilling Depth (m): 600
Open Drilling Diameter (mm):325
Hole Diameter(mm):75
Drill Pipe Diameter(mm):42-60
Drill Pipe Inclination (°): 90-75
Power (kw): YN27/39
Weight (kg): 1800
Dimensions(mm): 2600*900*1750

Request A Quote

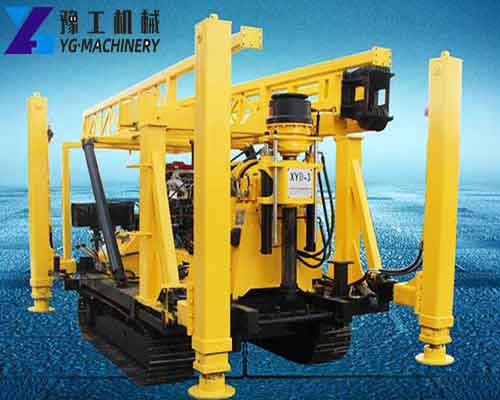

XYD-3 Core Drilling Rig for Sale
XYD-3 Core Drilling Rig for Sale


Model: XYD-3
Drilling Depth (m): 600
Open Drilling Diameter (mm):325
Hole Diameter(mm):75
Drill Pipe Diameter(mm):42-60
Drill Pipe Inclination (°): 90-75
Power (kw): YN33GBZ/65
Weight (kg): 6200
Dimensions(mm): 4500*200*2700
Request A Quote

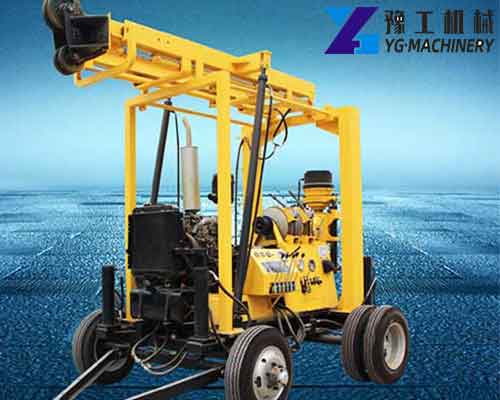

XYX-3 Core Drilling Rig
XYX-3 Core Drilling Rig


Model: XYX-3
Drilling Depth (m): 600
Open Drilling Diameter (mm):325
Hole Diameter(mm):75
Drill Pipe Diameter(mm):42-60
Drill Pipe Inclination (°): 90-75
Power (kW): YN27/39
Weight (kg): 3600
Dimensions(mm): 2900*2560*3300
Request A Quote

Technical Data of XY-3 Core Drilling Equipment

Model XY-3 XYD-3 XYX-3
Drilling Depth (m) 600 600 600
Open Drilling Diameter (mm) 325 325 325
Final Hole Diameter(mm) 75 75 75
Drill Pipe Diameter(mm) 42-60 42-60 42-60
Drill Pipe Inclination (°) 90-75 90-75 90-75
Power (kW) YN27/39 YN33GBZ/65 YN27/39
Weight (kg) 1800 6200 3600
Dimensions(mm) 2600*900*1750 4500*200*2700 2900*2560*3300

Portable Drilling Rig for Sale

Portable drilling rig for sale in Henan YG refers to a crawler drilling rig that can be used for geological exploration and water core drilling. With automatic lifting drill mast, our portable core drilling equipment is very easy in operation and moving around. The crawler adopts a rubber track which is lightweight, weak vibration, and low noise. This core drilling machine should use with a mud pump. According to different drilling depth and opening hole diameter, we have three types of portable core drilling equipment for you to choose from which are XYD-130, XYD-180, and XYD-200. You can check the parameter below and choose your required model.

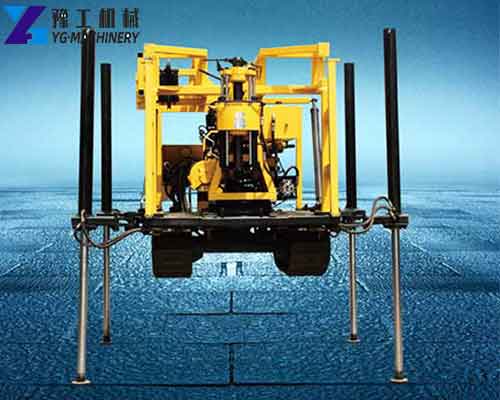

Core Machine for Sale
Core Machine for Sale

Request A Quote

Technical Parameter of Portable Drilling Rig for Sale

Model XYD-130 XYD-180 XYD-200
Drilling Depth (m) 130 180 200
Open Drilling Diameter (mm) 220 220 325
Final Hole Diameter(mm) 75 75 75
Drill Pipe Diameter(mm) 42-60 42-60 42-60
Drill Pipe Inclination (°) 90-75 90-75 90-75
Power (kW) 13.2 13.2 15
Weight (kg) 3350 3400 3600
Dimensions(mm) 3800*1950*2700 3800*1950*2700 3800*1950*2700

XY-44A Core Drill Rig for Sale

XY-44A rock core drilling machine is a multifunctional and stable-performance drilling rig which has a strong drilling power and smart downhole pressure indicator. You can choose an electric motor or diesel motor as the driven engine. The vertical shaft of the rock core drilling equipment ups to 93mm which provides high efficiency for the drilling work.

XY-44A Core Drilling Equipment
XY-44A Core Drilling Equipment

Request A Quote

Technical Parameter of XY-44A Core Drilling Equipment

Model XY-44A
Drilling Depth (m) 300-1400
Drill Pipe Diameter(mm) 42-89
Drill Pipe Inclination (°) 0-360
Power (kW) 37/81
Spindle L. D (mm) 93
Power Speed Up to 2800r/min
Weight (kg) 2300
Dimensions(mm) 3050*1100*1920

Core Drilling Rig Manufacturer – YG Machinery

Henan YG Machinery Co., Ltd specializes in the manufacturing of different types of drilling rigs, such as water well drilling rig, core drilling equipment, crawler drilling rig, DTH drilling rig, air drilling rig, construction drilling rig, etc. We have a professional drilling rig production base, and we welcome your visit to our factory at any time.

From the assembly of raw material to the final rig, we strictly conform with the rig requirements to make sure our drilling rig creates the greatest benefits for our customers around the world. You can find our customers in America, Honduras, South Africa, Sri Lanka, Bolivia, Domini, Ghana, Pakistan, Afghanistan, Norway, Australia, Philippines, Lizhi, Ethiopia, Mexico, Qatar, etc. Our professionalism is proved by our customers. They trust us, and we provide the assured drilling rig.

Expert Group of Exploration Research Institute of the Ministry of Land and Resources in China comes to our factory to check the production of our drilling rig, and they also think our drilling rig is very good in quality and design. And we even invite Germany drilling rig experts to our factory to guide us on how to make the drilling rig better. So, please rest assured to buy a drilling rig from Yugong if you need it, and we believe we can have wonderful cooperation.
