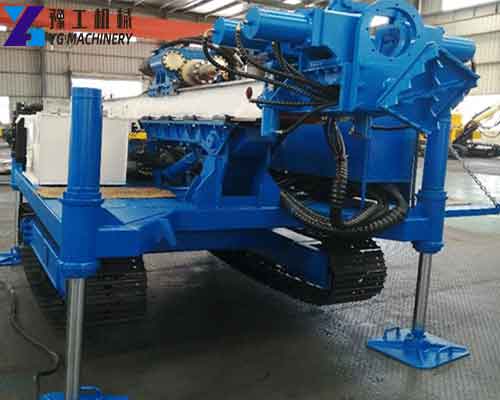

Crawler Anchor Drilling Rig

Crawler Anchor Drilling Rig
Crawler Anchor Drilling Rig

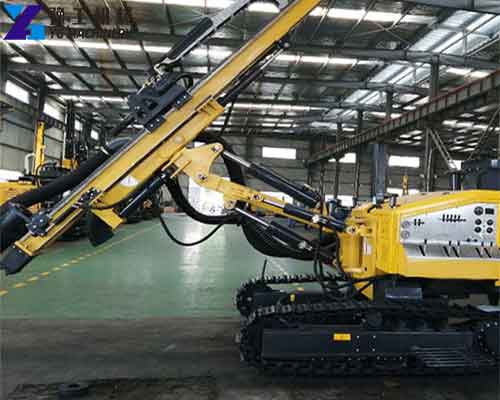

Crawler Mounted Anchor Drilling Rig
Crawler Mounted Anchor Drilling Rig

Request A Quote

Description:

The crawler anchor drilling rig is mainly used for the slip wave treatment engineering of railways, highways, water conservancy, and hydropower facilities, the anchorage engineering of the dangerous rock mass, the anchorage engineering of rock slopes such as controlling the displacement of buildings, and the deep foundation pit support and foundation for construction city. Reinforced engineering holes, blasting holes for blasting works, and tunnel pipe support holes. Good performance: Compact structure, small size, lightweight, flexible and flexible, can be applied to work on high slopes and scaffolds; Hydraulic powerhead has large output torque, strong drilling capability, and a wide range of drilling rigs; The output speed of the powerhead is step-less speed change, and the drilling parameters can be selected independently according to different construction requirements and geological conditions to achieve the best drilling efficiency. Therefore, no matter what type of anchor drilling rig, the hydraulic transmission system is an important part of the anchor drilling rig equipment. If the maintenance is not proper, various failures will occur, which will seriously affect the normal operation of the equipment. Therefore, the maintenance of the hydraulic system should be paid great attention to jobs. The faults that may occur in the hydraulic system are various. Most of the faults that occur during use are caused by improper oil selection, oil contamination, air entering the system, and excessive oil temperature.

Crawler Anchor Drilling Rig Parameters:

Machine parameters
Weight 6T Drilling diameter 150-250mm
Drilling depth 130-170m Drill pipe diameter 73,89,102,114mm
Shipping size 5400*2100*2000mm Vertical working size 3600*2500*5600mm
Power configuration
Electric motor Power 55kw+18.5kw
Powerhead
Rated output torque 7500Nm
Rated speed 10,20,30,35,40,60,65,70,85,130,170rpm
Propeller
Boost speed 0-5 Adjustable,7,23,30m/min Feed speed 0-10 Adjustable,14,46,59m/min
Rated lifting force 70kN Rated feed force 36kN
Feed process 3400mm Slip process 900mm
Drilling rig angle
Drilling angle 0-90° Climbing angle 25°

Request A Quote

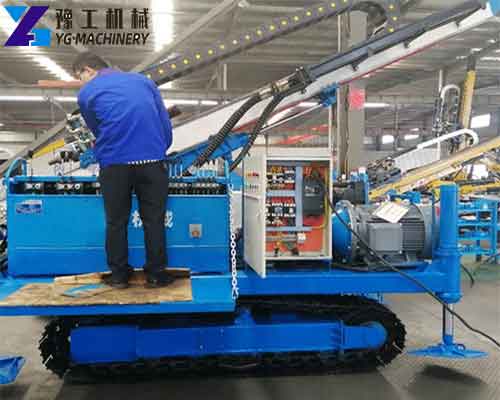

Crawler Drilling Rig
Crawler Drilling Rig

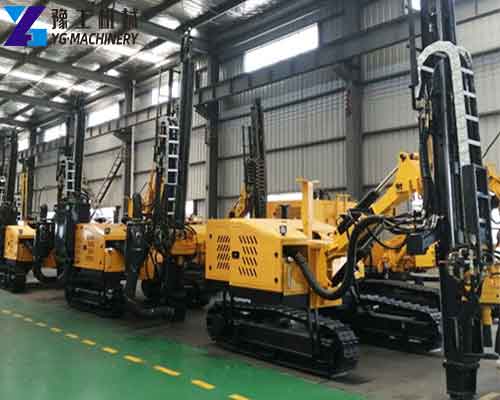

Crawler Drilling Rig Manufacturer
Crawler Drilling Rig Manufacturer

Crawler Anchor Drilling Rig Feature:

  1. The crawler anchor drilling rig is compact, energy-efficient, low noise, and environmentally friendly.
  2. The machine adopts low speed and high torque motor, which has stable and reliable performance and long service life.
  3. The machine has a wide range of applications and powerful drilling capabilities.
  4. The powerhead has a long stroke and high drilling efficiency.
  5. The powerhead and the guide rail are connected by a new wear plate, and the guide rail wears little.
  6. The drilling angle range is large, multi-functional design, and the drilling positioning is convenient and reliable.
Drilling Rig Working
Drilling Rig Working
Anchor Drilling Rig Parts
Anchor Drilling Rig Parts
Drilling Rig Production Process
Drilling Rig Production Process
