Portable Water Well Drilling Rigs for Sale

Portable water well drilling rigs, or mobile water well drilling rigs and small water well drilling rigs, are drilling rigs that are small in size and convenient in transportation. Portable Water Well Drilling Rigs for Sale in Henan YG Machinery Co., Ltd is suitable both for residential personable use and commercial use. You can drill a water well or borehole in the soil, clay, sandy stone, and soft rock ground, but not in hard rock ground. For hard rock drilling, we have many other models for you like hydraulic trailer mounted water well drilling rig. Following you will find several models of portable water well drilling rigs with pictures and detailed parameters.

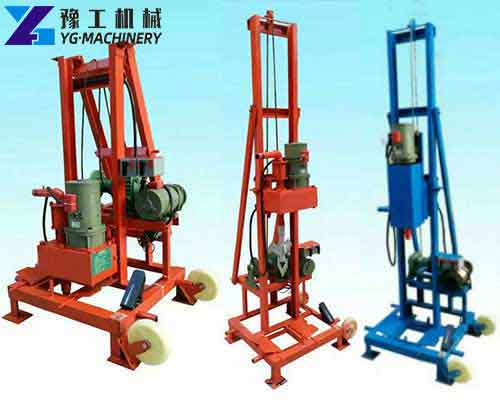

HY-180 Portable Water Well Drilling Rig
HY-180 Portable Water Well Drilling Rig

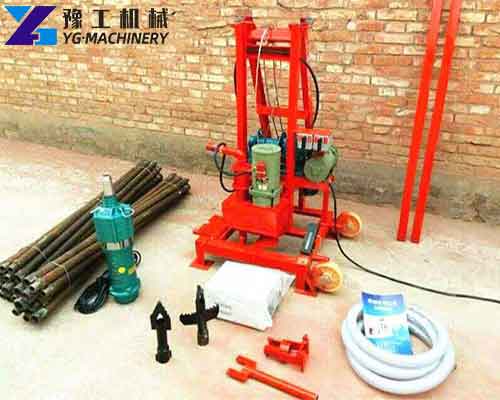

HY-180 Portable Water Well Drilling Rigs
HY-180 Portable Water Well Drilling Rigs

Model HY-180 Portable Water Well Drilling Rigs for Sale
Opening Hole Diameter 80-200mm
Drilling Depth 80m-100m
Drill Pipe Diameter and Length φ42mm, 1.5m
Motor Power 1.5kw-2kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size and Weight 700mm*700mm*2500mm  120kg

Request A Quote

Attractive Features over YG Portable Water Drilling Rig

1.Economical and worthy to owned by any person, firm, and family.
2.Practical and efficient by drilling speed of 30-40m depth per hour.
3. Easily operate by only a maximum of two workers and a low maintenance rate.
4. Portable type makes them mobilized even to be transported to wells and boreholes site in the most remote area.

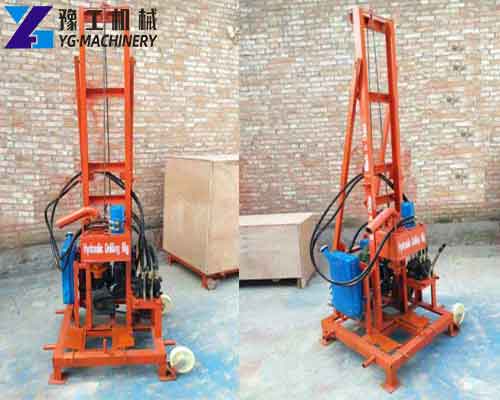

ZX-220 Portable Water Well Drilling Equipment
ZX-220 Portable Water Well Drilling Equipment

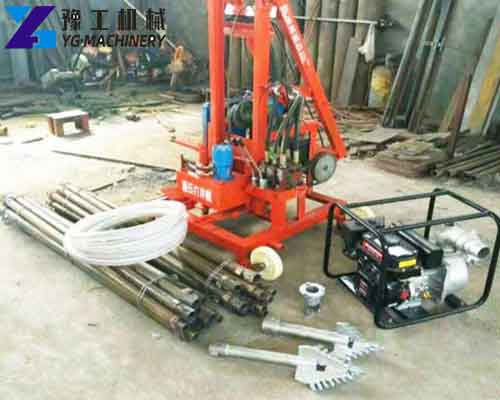

ZX-220 Portable Water Well Drilling Machine
ZX-220 Portable Water Well Drilling Machine

Model ZX-220 Portable Water Well Drilling Machine
Opening Hole Diameter 80-280mm
Drilling Depth 120m
Drill Pipe Diameter and Length Φ51mm, 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 800kg
Size and Weight 800mm*700mm*2500mm  200kg

Request A Quote

Main Application of Portable Water Well Drilling Machine

  1. You can drill a well with our portable water well drilling machine for farm irrigation and garden irrigation.
  2. A portable well drilling rig can provide convenience for water wells for personal use.
  3. You can also use the drilling rig to drill geothermal wells.
  4. If you want to take cores and do piling works, our portable small hydraulic water well drilling rig can still meet your requirements with special dill accessories.
  5. You can use Yugong water well drilling equipment in drilling soil, clay, even sandy stone.

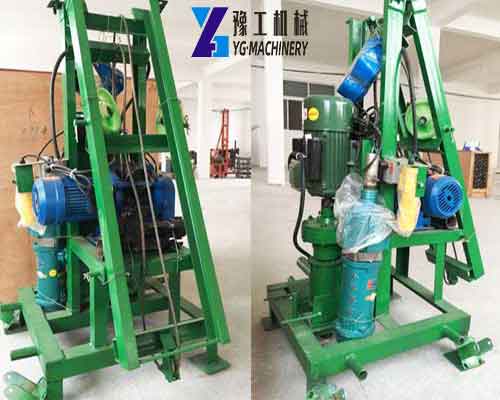

    HY-240 Portable Well Drilling Rig for Sale
    HY-240 Portable Well Drilling Rig for Sale

    Model HY-240 Portable Well Drilling Rig for Sale
    Opening Hole Diameter 100mm
    Drilling Depth 0-240m
    Drill Pipe Diameter Φ51mm
    Drill Pipe Length 1.5m
    Motor Power 4kw
    Pump Power 2.2kw
    Voltage 220v
    Lifting Force 500kg
    Size 700mm*700mm*2500mm
    Weight 150kg

    Request A Quote

    ZX-280 Portable Water Drilling Machine for Sale
    ZX-280 Portable Water Drilling Machine for Sale

    Model ZX-280 Portable Well Drilling Rig for Sale
    Opening Hole Diameter 280mm
    Drilling Depth 120m
    Drill Pipe Diameter Φ51mm
    Drill Pipe Length 1.5m
    Motor Power 4kw
    Pump Power 2.2kw
    Voltage 220v
    Lifting Force 800kg
    Lifting Height 2.5m
    Size 800mm*700mm*2500mm
    Weight 200kg

    Request A Quote

    Portable Water Drilling Rigs System

    You can find the main water well drill machine, water pump, drill rods, drill bits, power changer, hand winch, hand winch gear, engine cradle, steel swivel, main base, water deflector shields, main base stabilizer, steel quill, etc in a portable well drilling rig. Each part of the borehole water drilling rig is made up of high-quality materials. And we design the rig reasonably to make it bring more convenience and benefits for you.

    HY-350 Portable Water Well Drilling Rigs for Sale
    HY-350 Portable Water Well Drilling Rigs for Sale

    Model HY-350 Portable Well Drilling Rig for Sale
    Opening Hole Diameter 100mm
    Drilling Depth 0-350m
    Drill Pipe Diameter Φ51mm
    Drill Pipe Length 1.5m
    Motor Power 3kw
    Pump Power 2.2kw
    Voltage 220v
    Lifting Force 1000kg
    Lifting Height 2.5m
    Size 800mm*800mm*2700mm
    Weight 250kg

    Request A Quote

    Best HY-120 Portable Water Well Drilling Rigs for Sale
    Best HY-120 Portable Water Well Drilling Rigs for Sale

    Model HY-120 Portable Well Drilling Rig for Sale
    Opening Hole Diameter 80-200mm
    Drilling Depth 80-100m
    Drill Pipe Diameter Φ42mm
    Drill Pipe Length 1.5m
    Motor Power 1.5kw-2kw
    Pump Power 2.2kw
    Voltage 220v
    Lifting Force 500kg
    Lifting Height 2m
    Size 700mm*700mm*2900mm
    Weight 120kg

    Request A Quote

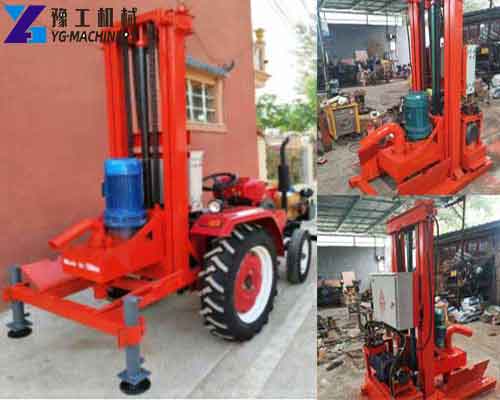

    HY-500 Portable Water Drilling Machine for Sale
    HY-500 Portable Water Drilling Machine for Sale

    Model HY-500 Portable Well Drilling Equipment for Sale
    Opening Hole Diameter 0-500mm
    Drilling Depth 120m
    Drill Pipe Diameter Φ65mm
    Drill Pipe Length 2m
    Motor Power 5.5kw
    Pump Power 5.5kw
    Voltage 220v
    Lifting Force 1000kg
    Lifting Height To the height of the machine
    Size 1000mm*1500mm*2000mm
    Weight 600kg

    Request A Quote

    How to Drill a Water Well with Portable Water Well Drilling Rigs?

    1.Select Site.

    You should select the water well drilling site firstly. And after the site selection, dig a borehole with 300-500mm depth and 100-300mm width. And you should make sure there is no bricks and gravel under the site to avoid water seepage, landslide, and sinking during the drilling.

    2. Dig A Water Storage Pond.

    Then dig a water storage pond with 1500mm width and 1000mm depth about 4 meters away from the water well borehole. And hang the water pump in the water storage pond using a wooden pole (the water surface should cover the water pump). the other side of the water pump pipe connects with the faucet of the portable small well drilling rig.

    3. Start the Portable Water Well Drilling Equipment.

    Connect the water well drilling bits and drilling pipe closely. And when the main drilling machine lifts the portable water well drilling machine head, connect the first drilling pipe with drilling bits. While the main drilling machine descends the drilling machine head slowly, put the drilling bits to the borehole through the chassis hole vertically. Then start the portable well drilling rig and water pump. With the rotation of the drilling rod, a borehole is ready to form. Please keep in mind that the drilling bits should drill clockwise.

    4. Change Drilling Rod.

    After entering the first drilling rod, close the fuse and insert the drilling rod detaches bar. Portable water well drilling rig operator opens the reverse gear and rotates the drilling pipe counterclockwise. When the lifting head is separated from the drilling pipe, lift the drilling machine head and change another drilling pipe. Please make sure the top wire and end joint is connected with the drilling pipe. The drilling pipe should be changed several times until finding the ideal water-bearing geological sand layer.

    5.Off the Drilling Pipe.

    When finding the water layer in your required depth, not down the water sand depth and stop the portable water well drilling equipment. Use the water pump to wash sand in the borehole. When there is no sand and mud come out, start off the drill pipe.

    Choose Right Portable Water Drilling Rig Manufacturer – YG Machinery

    The portable water well drilling rig information I have presented above is the basic information you should know. Please trust Henan Yugong Machinery Co., Ltd because we will let the quality speak itself. We design a portable water well borehole drilling rig to drill water wells specifically. If you want to drill a blasting hole and get samples underground, we can recommend you DTH drilling rig and core drilling equipment. If you want to drill a hole in the wall or concrete, cement, and asphalt floor, we have a diamond coring machine for you. Henan YG  Machinery will be the right choice!

      Please feel free to give your inquiry in the form below. We will reply in 24 hours.
