DTH drilling rig also named down the hole drilling machine and blast hole drilling machine is a kind of drilling rig for drilling rocks. You can use this DTH drilling machine in mining, road construction, water conservancy, and stone-hole works, as well as drilling anchor holes for slop support, tunnel support, and foundation pit support. We mainly have two types of DTH drilling rigs: small DTH boring machines and crawler DTH rig machines. Each type can be made into full pneumatic driven and mixed electric pneumatic driven. Pictures and parameters will be presented below, please check and find your required one. If you want to know more, contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

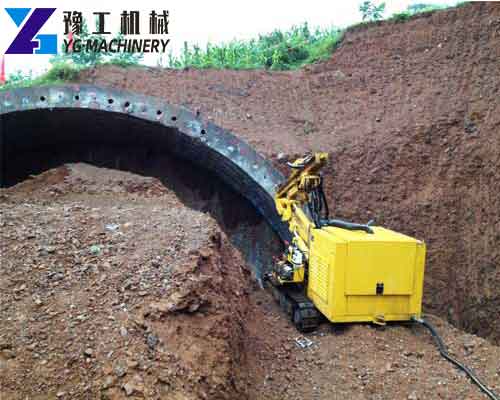

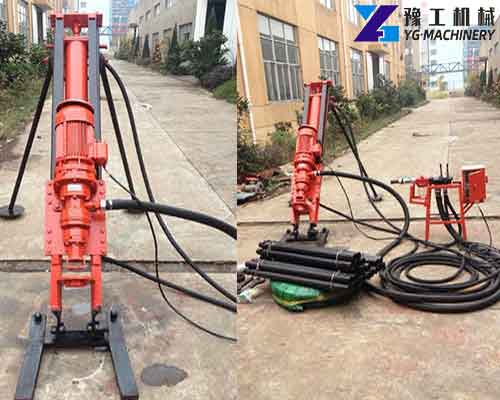

Small and Portable DTH Drilling Rig
We have four models of small and portable DTH rigs according to the difference in drilling depth, motor power, and drilling rod diameter: SKD70, SKD-100, SKQ100, and SKB120-5.5. These four models of the portable DTH machine are the perfect choice if you want to drill a hole for supporting slope and excavation construction of highways and railways because they are easy to move around. Many of our customers buy this machine for their small size and low cost. Please check the details below and choose the one you need. Email us freely if you want to know more about the price.
SKD70 DTH Drilling Rig Specification
Drilling Hole Diameter: 50-90mm
Drilling Depth: 15m
Drilling Speed: 110r/min
Working Air Pressure: 0.5-0.7mpa
Air Consumption: 4m3/min
Cylinder Diameter: 90mm
Max. Propelled Force: 8000N
Drilling Rod OD: 42mm
Drilling Rod Length: 1025mm
Dimension: 1740*260*420mm
Weight: 280kg
Request A Quote

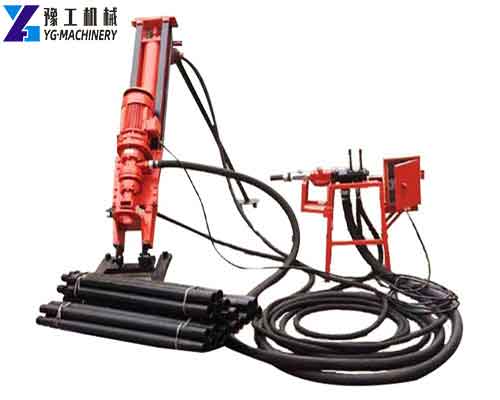

SKD-100 DTH Drilling Machine Specification
Drilling Hole Diameter: 90-130mm
Drilling Depth: 0-25m
Drilling Speed: 110r/min
Working Air Pressure: 0.5-1.0mpa
Air Consumption: 6m3/min
Cylinder Diameter: 140mm
Max. Propelled Force: 9600N
Drilling Rod OD: 50-60mm
Drilling Rod Length: 1025mm
Dimension: 2280*440*550mm
Weight: 470kg
Request A Quote

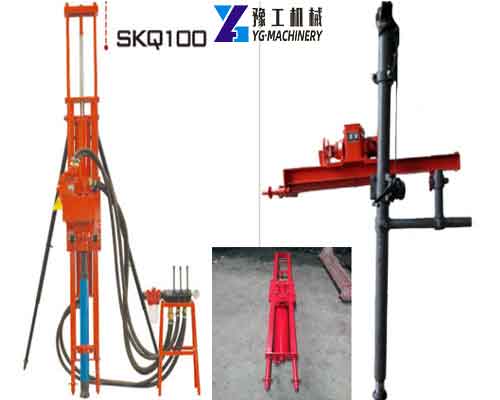

SKQ100 DTH Drilling Machine Specification
Drilling Hole Diameter: 90-130mm
Drilling Depth: 0-25m
Drilling Speed: 110r/min
Working Air Pressure: 0.5-1.0mpa
Air Consumption: 12m3/min
Cylinder Diameter: 140mm
Max. Propelled Force: 9600N
Drilling Rod OD: 50-60mm
Drilling Rod Length: 1025mm
Dimension: 2230*380*550mm
Weight: 450kg
Request A Quote

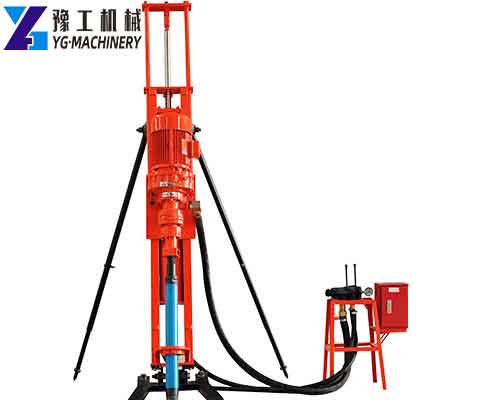

SKB120-5.5 DTH Drilling Machine Specification
Drilling Hole Diameter: 90-130mm
Drilling Depth: 0-40m
Drilling Speed: 110r/min
Working Air Pressure: 0.5-1.0mpa
Air Consumption: 10m3/min
Cylinder Diameter: 140mm
Max. Propelled Force: 9600N
Drilling Rod OD: 60mm
Drilling Rod Length: 1025mm
Dimension: 2230*380*550mm
Weight: 480kg
Request A Quote

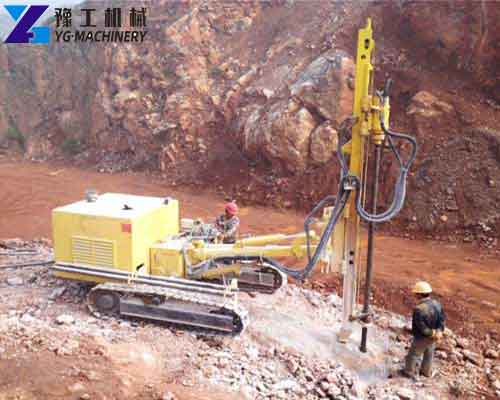

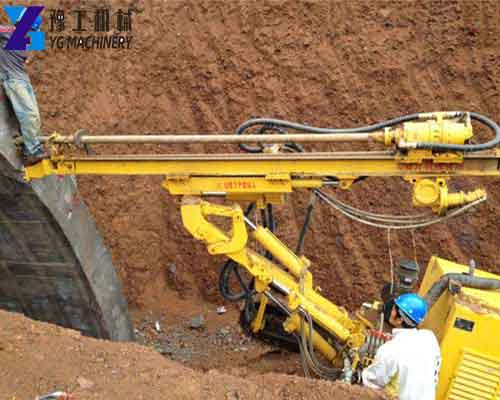

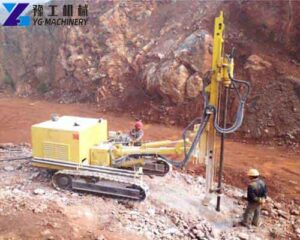

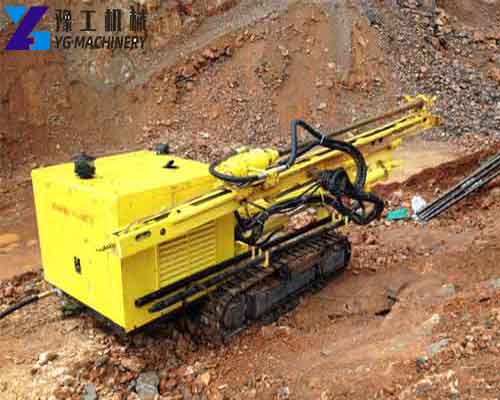

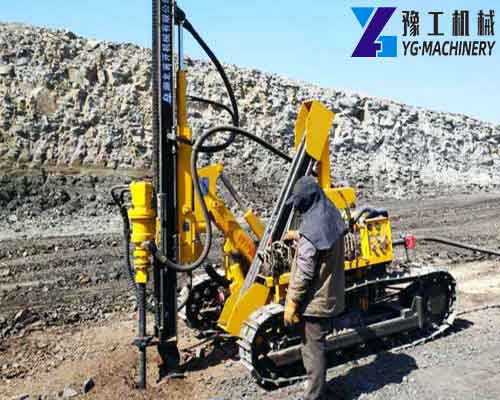

Crawler DTH Rig Machine
Crawler DTH rig machine wins its market for its low cost in transportation. One man is enough to operate the machine and observe the progress of drilling. The crawler DTH rig machine is equipped with roller chains and fixed pulleys driven by a sprocket which greatly improves the usability and durability of the rigging machine. In the control dashboard, there is a pressure gauge to let you know whether there is a failure on the DTH drilling equipment. There are some types of DTH drilling rigs for you to choose from SKL 100T DTH rig machine, SKM-150T DTH drilling equipment, SKM153 DTH drilling machine, FY series DTH drilling rig, and XY series DTH drilling equipment. You can check the technical parameters below. If you want to know more about the price, please email us.

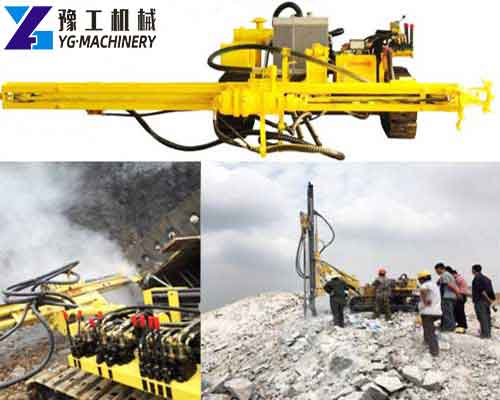

SKL 100T DTH Drilling Machine Specification
Applicable Rock: F=6-20
Opening Hole Diameter: 83-130mm
Drilling Depth: 30m
Walking Speed: 2.5km/h
Climbing Angle: 300
Rotating Speed: 0-90r/min
Max. Lifting Force: 15KN
Working Pressure: 0.5-1.4Mpa
Air Consumption: 7-12m3/min
Diesel Motor Power: 33kw
Dimension: 4400*1980*2260mm
Weight: 3.5t
Request A Quote

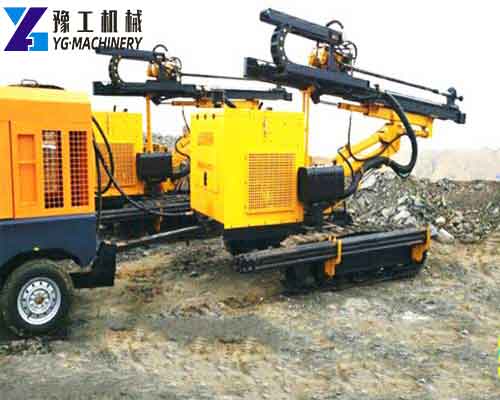

SKM-150T DTH Drilling Machine Specification
Applicable Rock: F=6-18
Opening Hole Diameter: 90-140mm
Drilling Depth: 30m
Drilling Speed: 1.75m/min
Walking Speed: 2.5km/h
Climbing Angle: 280
Rotating Speed: 0-90r/min
Max. Lifting Force: 28000KN
Diesel Motor Power: 60/73kw
Dimension: 6500*2230*2380mm
Weight: 5.8t
Request A Quote

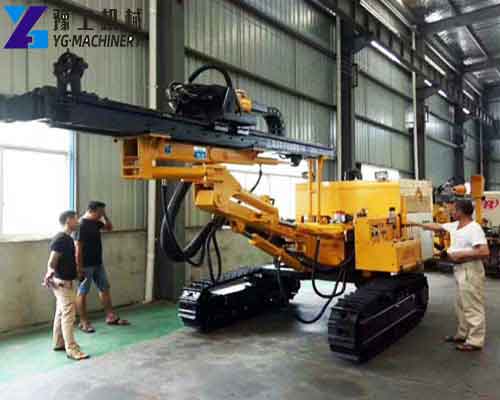

SKM153 DTH Drilling Machine Specification
Model: SKM-153
Applicable Rock: F=6-20
Opening Hole Diameter: 90-180mm
Drilling Depth: 30m
Walking Speed: 2.5km/h
Climbing Angle: 300
Air Consumption: 9-14m3/min
Diesel Motor Power: 56/45kw
Dimension: 4400*2200*2050mm
Weight: 5.2t
Request A Quote

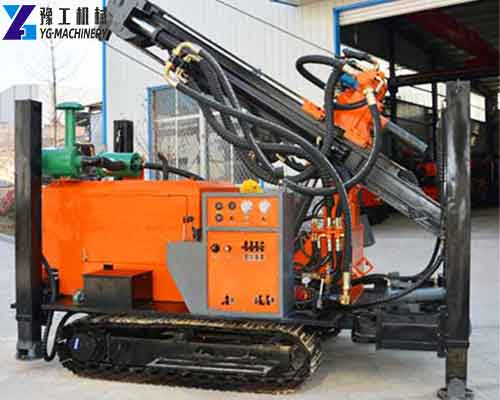

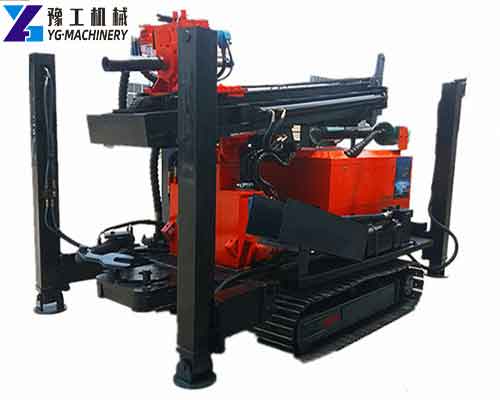

FY Series DTH Drilling Machine Specification
| Model | FY180 | FY200 | FY260 | FY300 | FY400 | FY600 |
| Total Weight(kg) | 3800 | 4600 | 6200 | 8800 | 8700 | 12000 |
| Dimension(mm) | 3800*1550*2350 | 3800*1600*2450 | 3900*1950*2550 | 4350*1850*2750 | 5050*2100*2800 | 5400*2100*2850 |
| Hole diameter (mm) | 130-254 | 140-325 | 140-325 | 180-325 | 140-325 | 140-350 |
| Hole depth (m) | 180 | 200 | 260 | 300 | 400 | 600 |
| Disposable drilling depth (mm) | 3000 | 3000 | 3000 | 6000 | 6000 | 6600 |
| Walking speed (km / h) | 2.5 | 2.5 | 2.5 | 2 | 2.5 | 2.5 |
| Climbing ability (Max.) | 30 | 30 | 30 | 30 | 30 | 30 |
| Distance off ground (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Working pressure (Mpa) | 1.7-2.5 | 1.7-3.0 | 1.7-3.0 | 1.7-3.3 | 1.7-3.0 | 1.7-3.5 |
| Air consumption (m3 / min) | 15-27 | 17-35 | 17-35 | 23 | 17-35 | 17-35 |
| Matching power (kW) | 42-65 | 65 | 85 | 85 | 95 | 115 |
| Rotational speed (rpm) | 48-70 | 50-70 | 40-70 | 55-115 | 45-75 | 45-110 |
| Rotational torque (N.M) | 4200-5600 | 5000-6500 | 7000-9000 | 7200-8500 | 8500-10000 | 8500-10500 |

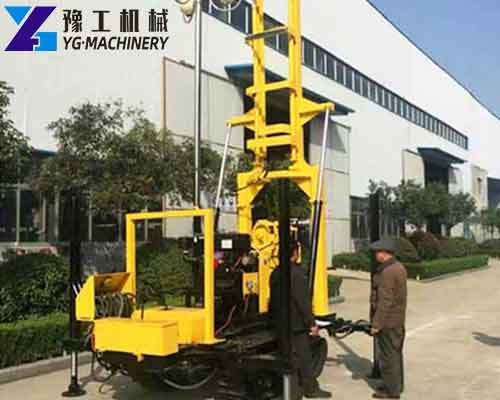

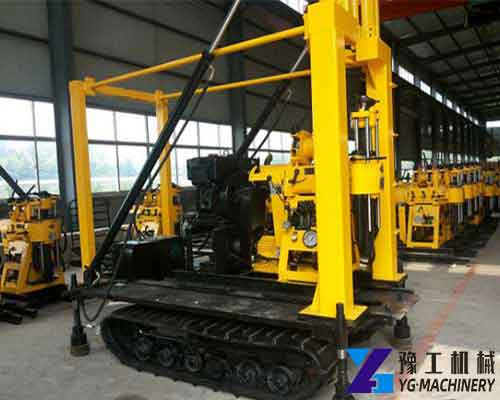

XY Series DTH Drilling Machine Specification
| Model | XYD-130 | XYD-180 | XYD-200 | |
| Drilling Depth (m) | 130 | 180 | 200 | |
| Open Drilling Diameter (mm) | 220 | 220 | 325 | |
| Final Hole Diameter (mm) | 75 | 75 | 75 | |
| Drill Pipe Diameter (mm) | 42-60 | 42-60 | 42-60 | |
| Drill Pipe Inclination (°) | 90-75 | 90-75 | 90-75 | |
| Power (kW) | 13.2 | 13.2 | 15 | |
| Weight (kg) | 3350 | 3400 | 3600 | |
| Dimensions (mm) | 3800*1950*2700 | 3800*1950*2700 | 3800*1950*2700 | |
| Vertical Shaft | ||||
| Vertical Axis Speed (r/min) | 142 285 570 | 130 300 480 730 830 1045 | 64 128 287 557 | |
| Vertical Axis Travel (mm) | 450 | 450 | 450 | |
| Crawler Chassis | ||||
| Crawler size | 350*90*48mm | 350*90*48mm | 350*90*48mm | |
| Crawler angle(°) | 20 | 20 | 20 | |
| Moving speed(km/h) | 10 | 10 | 10 | |
| Landing leg height(mm) | 1300 | 1300 | 1300 | |
| Drill Mast | ||||
| Rated Load(t) | 18 | 18 | 18 | |
| Effective Height | 6.5 | 6.5 | 6.5 | |
| Tower Specifications (mm) | 73 | 73 | 73 | |
| Mud Pump | ||||
| Model | 160L/min | 160L/min | 160L/min | |
| Max Pressure (Mpa) | 1.3 | 1.3 | 1.3 | |
| Reciprocations No. (times/min) | 165 | 165 | 165 | |
| Suction Pipe Diameter | Φ51mm*4.5m | 51mm | 51mm | |
| High-Pressure Pipe Diameter | Φ32mm*6m | 32mm | 32mm | |

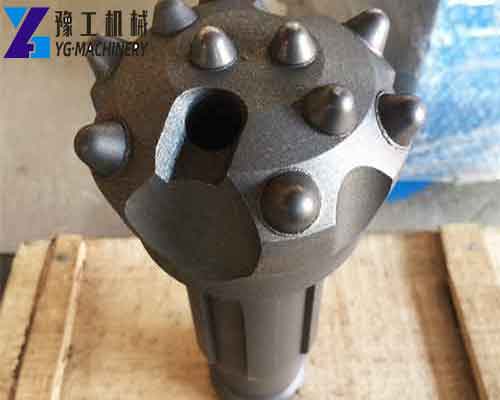

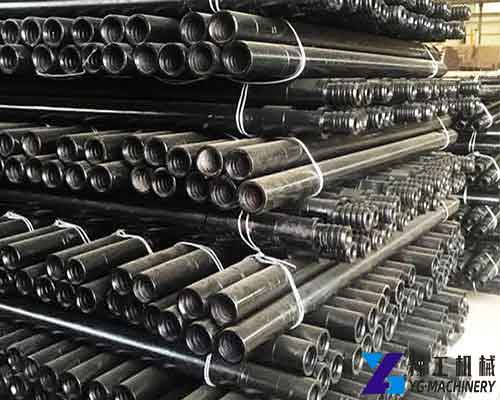

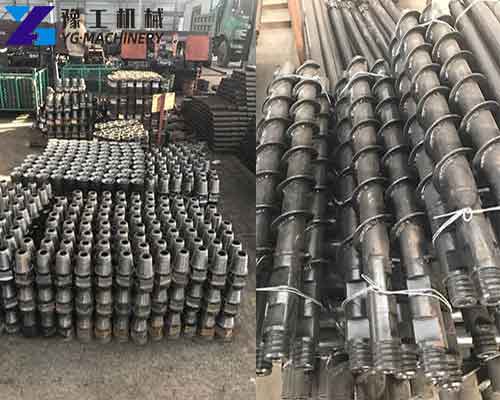

DTH Drill Bit

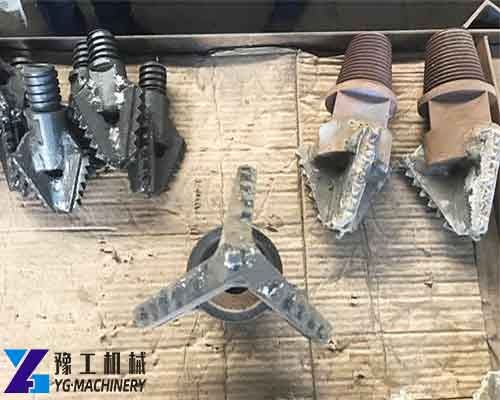

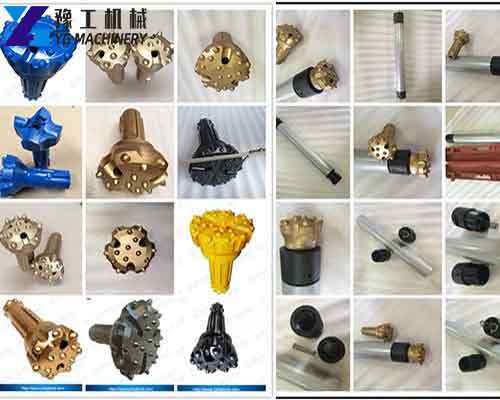

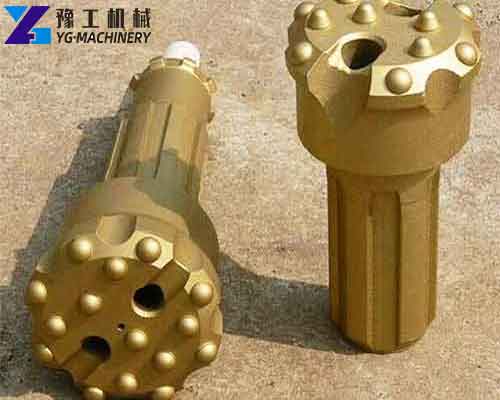

Here at YG Machinery, you can not only find different types of DTH drilling machines but also DTH bits. 2.5 inches, 3.0 inches, 4.0 inches, 5.0 inches, and 6.0 inches are all available to you here. We even can customize a particular DTH drilling bit for you according to your needs. Drilling bits in Yugong have a durable and efficient performance, and they are corrosion resistant and have high tensile strength with good quality. So please email us if you need DTH drilling bits and other drill bits used in water well drilling rigs.
Want The Price of Our DTH Drilling Rig?
DTH Drilling Method – Working of DTH
- In DTH drilling, the percussion mechanism commonly called the hammer is located directly behind the DTH drill bit.
- The drill pipes transmit the necessary feed force and rotation to the hammer and bit plus compressed air or fluids for the hammer and flushing of cuttings.
- The drill pipe is added to the drill string successively behind the hammer as the hole gets deeper.
- The piston strikes the impact surface of the bit directly, while the hammer casing gives straight and stable guidance to the DTH drilling bits.
Interested In YG DTH Drilling Rig?
DTH Machine Price – YG Machinery
Here we can promise you that the quality of our DTH drilling equipment deserves the price we present to you no matter the water well drilling rig, core drilling machine, crawler drilling rig, and other drilling rigs. We have exported to over 40 countries around, and some customers have used our drilling rigs for more than 10 years. So please rest assured to buy it if you need it. Except for DTH drilling rigs, you can also find water well drilling rigs, core drilling equipment, trailer-mounted drilling rigs, engineering drilling rigs, and other drilling rigs here. Contact us freely if you need the price.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
