Water Well Drilling Rigs for Sale

Water well drilling rig is one of the common types of drilling rigs which mainly used for water bore drilling. The water well drilling machines vary in drilling depth and application. The drilling depth ranges from tens of meters to two or three thousand meters, which means that you can not only use the water well boring machine in farms and gardens but also in geological exploration and building construction. The drilling depth and opening hole diameter can be tailored to your requirements. With more than ten years of experience and development, I believe our water drilling machine will surpass your expectations.

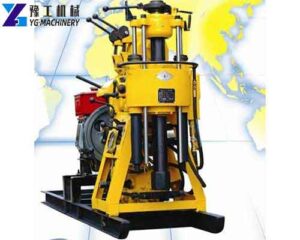

HZ-130 Hydraulic Water Well Drilling Rigs for Sale

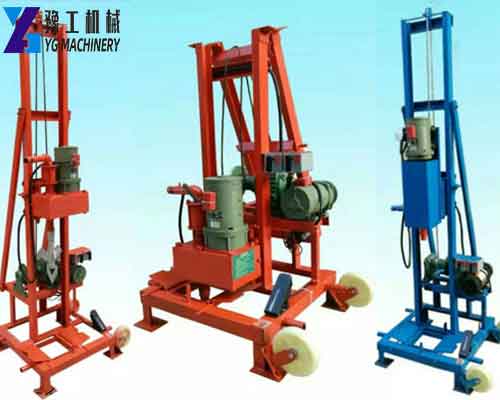

Water Well Drilling Rigs for Sale

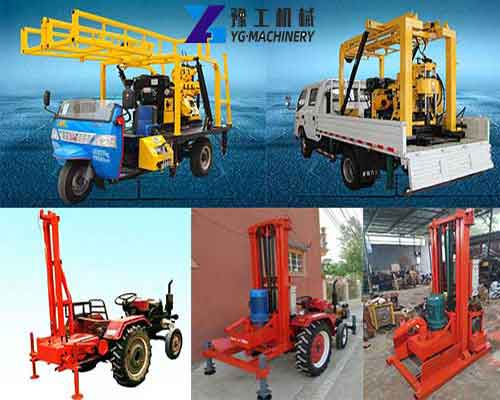

Trail Truck and Tractor Mounted Water Well Drilling Rigs for Sale

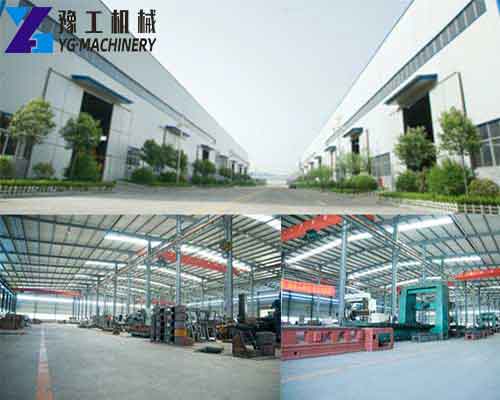

Henan YG Machinery
HZ-130 Hydraulic Water Well Drilling Rigs for Sale Water Well Drilling Rigs for Sale Trail Truck and Tractor Mounted Water Well Drilling Rigs for Sale Henan YG Machinery

Request A Quote

Types of Water Well Drilling Rigs

There are so many types of water rigs concerning their different application site, working engine, size, drilling depth, and moving way. Here I will present you with several different types of water well drilling rigs, and you can choose the one you want. If you really don’t know which and how to choose, please email us, and we will recommend you the most suitable well rig for you.

Hydraulic Water Well Drilling Rig

Here in Yugong Machinery, we have the electric hydraulic water well drilling rig, gasoline hydraulic water well drilling machine, and diesel-hydraulic drilling rig. If it is not very convenient in using electricity, gasoline and diesel hydraulic rig will be an ideal choice. The hydraulic water well drilling rig is powerful in drilling. We have three types of small hydraulic water well drilling rigs and one big size hydraulic water well drilling machine.

Hydraulic Water Well Drilling Rig for Sale
Hydraulic Water Well Drilling Rig for Sale

Model: HZ Water Rig
Drilling Depth: 130/180/200m
Opening Hole Diameter: 220mm
Final Hole Diameter: 75mm
Drill Pipe Diameter: 42-60mm
Drill Pipe Inclination: 90-75 degree
Max. Pull Force: 2000/2100/2500kg
Drill Mast Height: 6.5m
Mud Pump Flow: 95/145L/min
Power: 13.2/14.7kw
Weight: 920/950/1150kg
Dimension: 2400*950*1400mm/2700*950*1770mm
Request A Quote

The big size hydraulic water well drilling machine cannot only drill soil but also rocks. And it is the hot seller in our company. You can check the parameter to see whether it meets your requirements. If you need more information, please contact us freely by sending an inquiry.

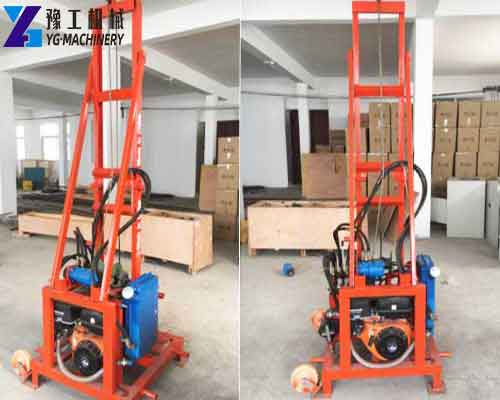

Hydraulic Drilling Rig
Hydraulic Drilling Rig

Model: HY-240
Drilling Pipe Diameter: Φ51mm
Drilling Pipe Length: 1.5m
Power: 220v 4kw
Drilling Depth: 120mm
Max. Opening Hole Diameter: 260mm
Lifting Force: 800kg
Lifting Height: 2.5m
Water Pump Power: 2.2kw
Weight: 200kg
Dimension(L*W*H): 800*700*2500MM
Request A Quote

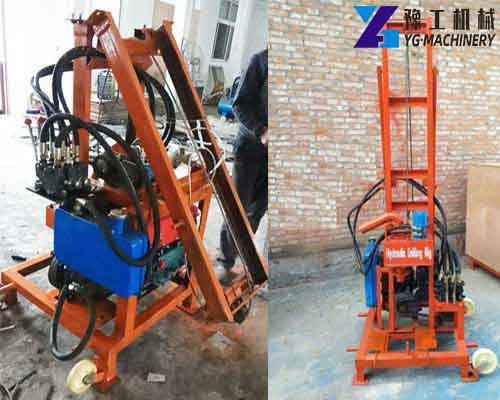

Hydraulic Water Well Drilling Rig
Hydraulic Water Well Drilling Rig

Model: ZX-220
Drilling Pipe Diameter: Φ51mm
Drilling Pipe Length: 1.5m
Power: 220v 4kw
Drilling Depth: 120mm
Max. Opening Hole Diameter: 280mm
Lifting Force: 800kg
Lifting Height: 2.5m
Water Pump Power: 2.2kw
Weight: 200kg
Dimension(L*W*H): 800*700*2500MM
Request A Quote

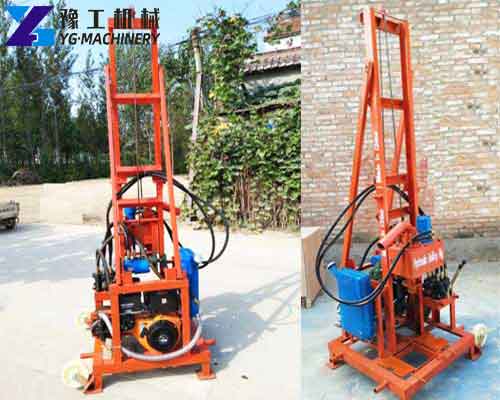

Small Drilling Rig for Sale
Small Drilling Rig for Sale

Model: ZX-280
Drilling Pipe Diameter: Φ51mm
Drilling Pipe Length: 1.5m
Power: 220v 4kw
Drilling Depth: 120mm
Max. Opening Hole Diameter: 280mm
Lifting Force: 800kg
Lifting Height: 2.5m
Water Pump Power: 2.2kw
Weight: 200kg
Dimension(L*W*H): 800*700*2500MM
Request A Quote

Small Water Well Drilling Rig for Sale

Small water well drilling rig, as the picture and parameter presented below, is small in size and convenient in moving around. This mini water well drilling rig is often used in drilling soil and soft rock like limestone, not hard rock. Although this type of water well drilling rigs for sale in Yugong is small in size, it is not low in drilling speed at all. This small water well drilling machine can easily drill 30 to 40 meter within an hour. So if you want to drill a water well for home use and farm irrigation, this small well drilling rig will be your optimal choice.

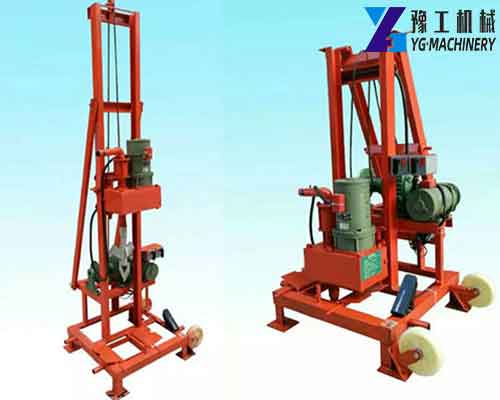

Small Water Well Drilling Rig for Sale
Small Water Well Drilling Rig for Sale


Model: HY-180
Drill hole depth: 80m-100M
Max. Opening Hole Diameter: 80–200mm
Drill Pipe Diameter: φ42mm, 1.5m
Motor Power: 1.5kw–2kw
Pump Power: 2.2kw
Voltage: 220V
Lifting Force: 500kg
Size: 700mm*700mm*2500mm
Weight: 120kg
Request A Quote

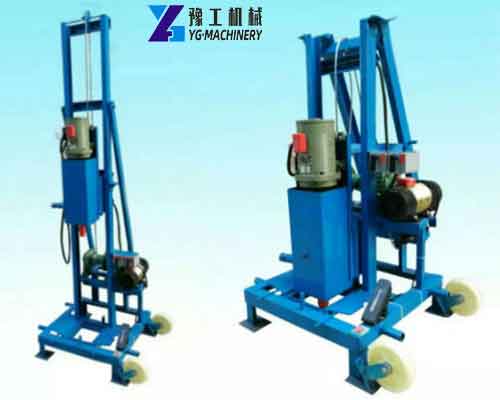

Small Water Well Drilling Rig
Small Water Well Drilling Rig

Model: HY-180B
Drill Hole Depth: 80m-100m
Max. Opening Hole Diameter: 80–200mm
Drill Pipe Diameter: φ42mm, 1.5m
Motor Power: 1.5kw–2kw
Pump Power: 2.2kw
Voltage: 220V
Lifting Force: 500kg
Size: 700mm*700mm*2500mm
Weight: 120kg
Request A Quote

Home Water Well Drilling Equipment

Home water well drilling equipment, or backyard water well drilling rig, just as the name, is designed for home water well drilling. You can use this drilling rig in your backyard or garden to spread water for your beautiful lawn. And if you are a farmer or in animal husbandry, a home water well drilling rig could be a perfect thing because you can find there is a water box in front of the small drilling rig. Water is so important for people and animals, so it would be a good thing for us to help you if it is possible.

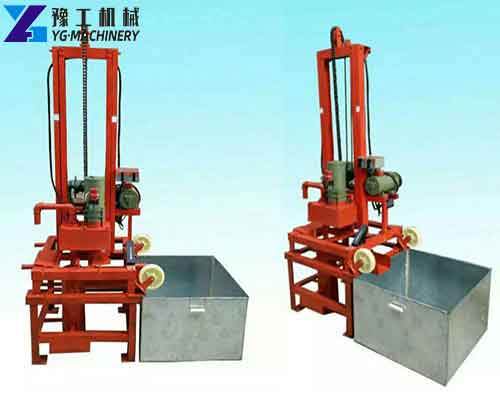

Home Water Well Drilling Equipment
Home Water Well Drilling Equipment


Model: HY-120
Drill hole depth: 80m-100M
Maximum Opening Diameter: 80 – 200mm
Drill Pipe Diameter: φ42mm, 1.5m
Motor Power: 1.5kw – 2kw
Pump Power: 2.2kw
Voltage: 220V
Size: 700mm*700mm*2900mm
Weight: 120kg
Request A Quote

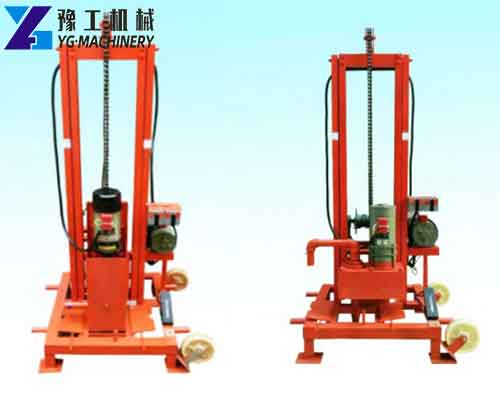

YG Portable Water Well Drilling Rig for Sale
YG Portable Water Well Drilling Rig for Sale

Model: HY-180SS
Drilling Pipe Diameter: Φ42 mm
Drilling Pipe Length: 1.5m
Motor Power: 60V, 1.5KW – 2KW
Drilling Depth: 100m
Water Pump Power: 2.2KW
Max. Opening Hole Diameter: 200mm
Lifting Height: 2m
Lifting Force: 500kg
Weight: 120kg
Dimension: 700*700*2500mm
Request A Quote

Portable Water Well Drilling Rig for Sale

Portable water well drilling rig for sale in our company is mainly those which can be folded easily and moving around conveniently. Compared with home water well drilling equipment and small water well drilling rig for sale in YG, portable water well drilling rigs are large in the diameter of drilling pipe, which means you can get a larger opening hole if you used a portable water well drilling machine.

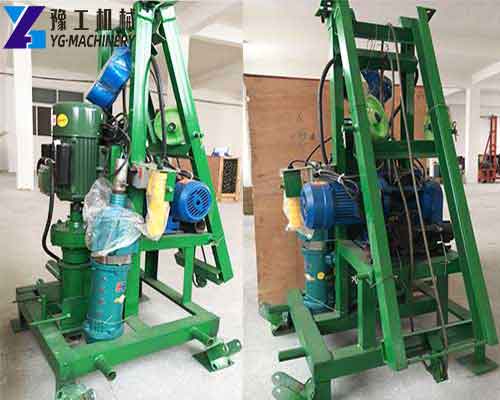

Portable Well Drilling Equipment
Portable Well Drilling Equipment


Model: HY-240
Drill Hole Depth: 100M
Max. Opening Hole Diameter: 0-240mm
Drill Pipe Diameter: φ51mm, 1.5m
Motor Power: 4kw
Pump Power: 2.2kw
Lifting Force: 500kg
Lifting Height: 2m
Voltage: 220V
Size: 700mm*700mm*2500mm (can be folded)
Weight: 150kg
Request A Quote

A portable water drilling machine is actually good for renting or doing water well drilling job. So please check the below parameter to see if this drilling rig can accomplish your drilling requirements. if this one is what you are looking for, please send us an inquiry with your questions and other detailed requirements. Then you will get a reply quickly.

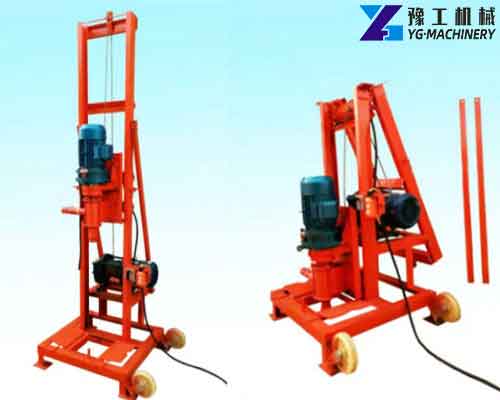

Portable Water Well Drilling Rigs for Sale
Portable Water Well Drilling Rigs for Sale


Model: HY-350
Drill Hole Depth: 100m
Max. Opening Hole Diameter: 0–350mm
Drill Pipe Diameter: φ51mm, 1.5m
Motor Power: 3kw
Pump Power: 2.2kw

Lifting Force: 1000kg
Voltage: 380V
Size: 800mm*800mm*2700mm (can be folded)
Weight: 250kg
Request A Quote

Trailer Mounted Water Well Drilling Rigs for Sale

Many of the water well drilling rigs can be made into trailer, truck, or track mounted. This type of water drill rig is characteristic of high efficiency and suitable for the middle construction project. If you own a water well drilling company, this one will be a great help. The trailer, track, or truck can delivery the water rig from one place to another quickly and easily. Check the below type and see if you are interested.

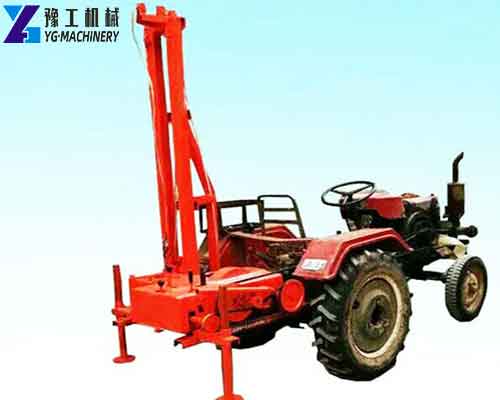

Tractor Mounted Water Well Drilling Rigs for Sale
Tractor Mounted Water Well Drilling Rigs for Sale

Model: HY-400
Drill Pipe Diameter: Φ51 mm;Φ60 mm
Drill Pipe Length: 2m
Diesel Motor Power: 12.1kw
Drilling Depth: 60m
Water Pump Flow: 72m3/h
Drilling Hole Diameter: 0-400mm
Lifting Force: 1000kg
Lifting Height: 3m
Weight: 110kg
Dimension: 1000mm*1200mm
Request A Quote

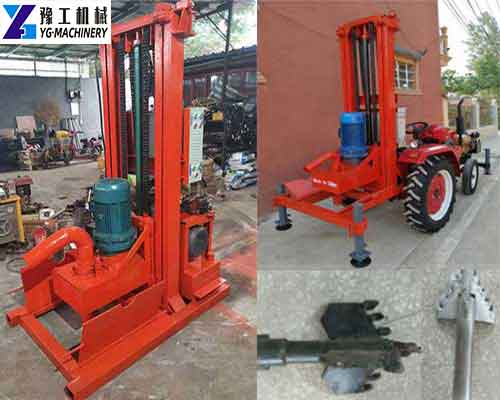

Trailer Mounted Water Well Drilling Rigs for Sale
Trailer Mounted Water Well Drilling Rigs for Sale


Model: HY-500
Drill Hole Depth: 120m
Max. Opening Hole Diameter: 0–500mm
Drill Pipe Diameter: φ65mm, 2m
Lifting Force: 1000kg
Motor Power: 5.5kw
Pump Power: 5.5kw
Voltage: 380V
Size: 1000mm*1500mm*2000mm
Weight: 600kg
Request A Quote

Shallow Water Well Drilling Equipment

If you want to drill a shallow water well, the small water well drilling rig, home water well drilling equipment, and portable water well drilling rig can meet your requirements. Of course, if there is no water rig you are looking for, please contact us freely.

Tractor Mounted Water Well Drilling Rig
Tractor Mounted Water Well Drilling Rig

Model: XYC-130A/180A/200A
Drilling Depth: 130m/180m/200m
Opening Hole Diameter: 220mm/220mm/325mm
Final Hole Diameter: 75mm
Drill Pipe Diameter: 42-60mm
Drill Angle: 90-75 degree
Matching Power: 13.2/13.2/15kw
Weight: 2750/2800/3000g
Dimension: 4000mm*1700mm*2300mm
Request A Quote

Deep Water Well Drilling Rigs for Sale

Deep water well drilling rigs for sale in Yugong is mainly used in geological exploration and get sample underground. We have deep well drilling equipment up to 3000 meters. So if you want, please contact us by email, and tell us your particle needs. We will try our best to meet your requirements.

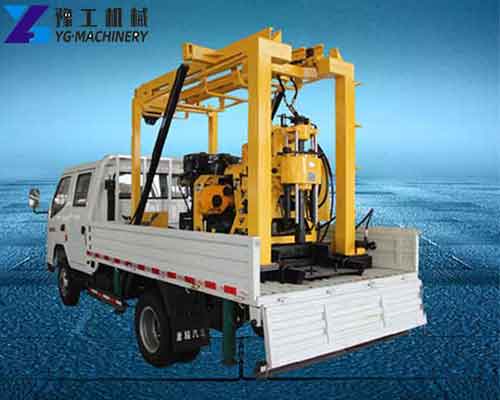

Truck Mounted Water Well Drilling Rig for Sale
Truck Mounted Water Well Drilling Rig for Sale

Model: XYC-200GT
Drilling Depth: 30-200m
Opening Hole Diameter: 300-75mm
Drill Angle: 90-75 degree
Verticle Shaft Rotating Speed: 64-557r/min
Verticle Shaft Stroke: 450mm
Max. Pull Force: 1600kg
Weight: 970kg
Diesel Engine: 14.7kw/2200rmp
Mud Pump: BW-160
Request A Quote

Water Well Drill Bits for Sale

A drill bit is one of the most important accessories in a drilling rig machine. Here in Yugong, we can provide you with PDC drill bits, alloy drill bits, steel drill bits, trefoil drill bits, horseshoe drill bits, diamond core drilling bits, sonic drill bits, bi-cone bits, tri-cone bits, claw bits, etc. You can check the picture below and choose the one you need. If there is no one you are looking for, please let us know because we can customize it for you.

Water Well Drilling Swivel for Sale

Water well drilling swivel is an important part of a drilling rig that functions as a connection of pump and drill string with a high-pressure hose. if you need swivels only, we can also customize it for you.

Henan YG Machinery
Henan YG Machinery

Interested In Our Water Well Drilling Rigs?.

How to Drill A Water Well?

When the water well drilling rig is not invented, drill a water well is very difficult for people. But thanks to the invention of water well the drilling machines, drill a well is not a big thing for people at all. People can drill a well for self-use, irrigation, or exploration by purchasing a water well drilling rig. About the specific steps on how to drill a water well, our technicians will tell you clearly if you need help after the purchase of the water rig. In addition, about the water well drilling techniques, water well drilling methods, and water well installation, we will provide help if you need it.

Water Well Drilling Machine Price

Many customers who want to buy a water well drilling rig, the first thing they ask is the price. But should you focus on the equipment and function first? Before you ask the price, you should confirm whether the water well drilling rig meets your requirements. After that is the price. And even though you care about the price, it should not be the first factor in choosing the water rig because you have to think about the service time and maintenance rate which could be a great cost if the water rig performs badly in these two aspects.

Water Well Drilling Rigs Manufacturers – YG Machinery

Henan YG Machinery Co., Ltd is not only a reputable water well drilling rig manufacturer in China but a reliable water well drilling machine supplier in some countries of the world. And actually, water well drilling rig is only one type of YG drilling rig, and you can also find exploration drilling rigs, crawler drilling rigs, air drilling rigs, blast hole drilling rigs, core drilling rigs, mining drilling rigs, small drilling rigs, track mounted drilling rigs, etc. Our good reputation comes from our customers. They trust us, and we try our best to help them. We hope you are the next one who believes us, and we will also surpass your expectations.

Daily Maintenance of the Water Well Drilling Machine

1. When the water well drilling rig in is transportation, you should keep it away from water.
2. The wire connector of the motor is not allowed to touch.
3. Wire rope should be check regularly.
4. The drill pipe head should be lubricated with oil before and after use and put it in the dry place to avoid rusting.
5. The motor of the water well drilling rig should not be overloaded for a long time.
6. Check the circuit and transformer insurance if the motor does not work.
