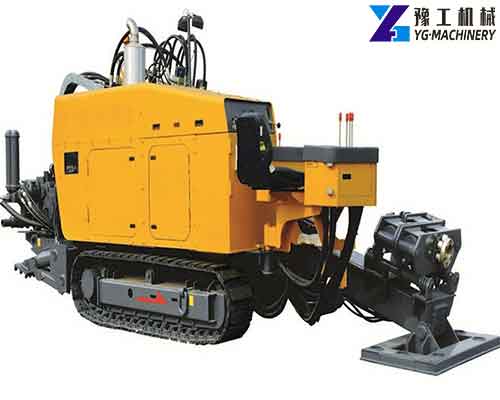

Directional Drilling Machine Price
Directional Drilling Machine Price

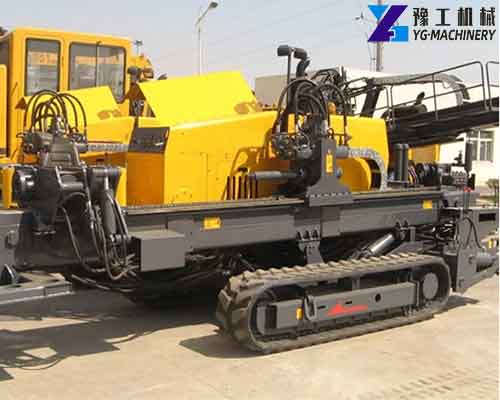

Small Directional Boring Machine
Small Directional Boring Machine

The horizontal directional drilling machine is a kind of trenchless mechanical equipment specially developed by YG Machinery for pipeline crossing engineering. It uses a complete set of advanced hydraulic systems. Among the same type of trenchless mechanical equipment, it has the advantages of small size, lightweight, and stable performance. It is suitable for various soil conditions from soft soil to hard rock. In addition, we have other types of drilling rigs that can also drill soil and hard rocks. Trailer-mounted water well drilling rigs, rotary rigs, crawler water well drilling rigs, hydraulic drilling rigs, DTH drilling machines, anchor drilling rigs, etc. Contact us to know the prices.【Whatsapp/Wechat/Phone/Skype】+8613613856800

Request A Quote

Parameter of HDD Drilling Machine:

Model

YG-160A

YG-180

YG-280

YG-320

YG-320A

Engine rated power

100KW

97KW

160KW

140KW/160KW

160KW

Push and pull

Cylinder

Motor

Motor

Cylinder

Motor

Maximum drag/feed force

160/100KN

180/180KN

280/280KN

320/320KN

320/320KN

Maximum torque of power head

 5000N.n

 6000N.n

 10000N.n

 12000N.n

 12000N.n

Power head speed

 0-180r/min

 0-140r/min

 0-120r/min

 0-140r/min

 0-140r/min

Moving speed of power head

 30m/min

 20m/min

 20m/min

 20m/min

 20m/min

Maximum reaming hole diameter

 Φ600mm

 Φ600mm

 Φ750mm

 Φ800mm

 Φ800mm

Drill rod length (single)

 3m

 3m

 3m

 3m

 3m

Drill pipe diameter

 Φ60mm

 Φ60mm

 Φ73mm

 Φ73mm

 Φ73mm

Drill pipe diameter

 10-23°

 10-22°

 10-23°

 10-20°

 10-20°

Maximum mud flow

 160L/min

 250L/min

 320L/min

 320L/min

 320L/min

Maximum mud pressure

 100bar

 80bar

 80bar

 80bar

 80bar

Overall quality

 6700kg

 8500kg

 12500kg

 11500kg

 11200kg

Dimensions (length*width*height)

5700*1820*2400

mm

6400*2270*2340

mm

7100*2260*2450

mm

7100*2250*2450

mm

7662*2162*2450

mm

Request A Quote

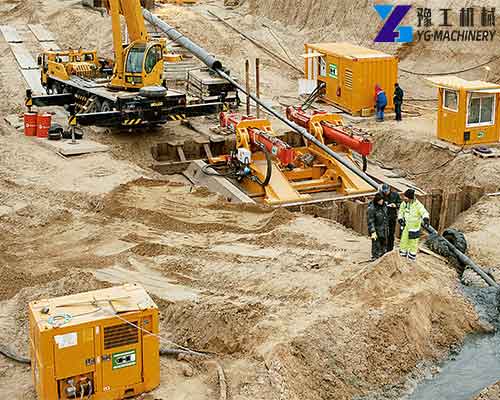

HDD Drilling Machine for Sale
HDD Drilling Machine for Sale

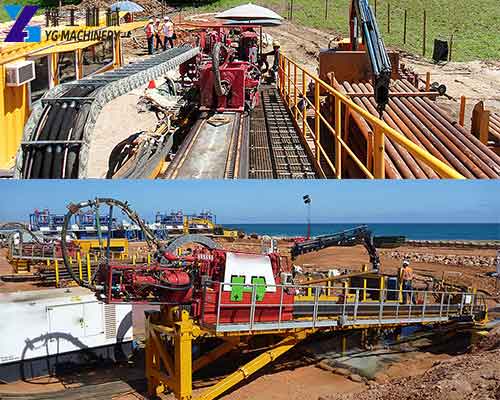

Underground Horizontal Boring Machine
Underground Horizontal Boring Machine

Application of Portable Horizontal Drilling Machine for Sale in YG:

The horizontal directional drilling machine is non-excavation construction equipment used to traverse highways, railways, buildings, rivers, urban streets, cultural relics protection areas, etc., to lay various underground utilities (pipes, cables, etc.). It can also be used for horizontal environmental control wells, oil depots, dams, and dewatering holes in highway subgrades. It is the ideal equipment for telecommunications, electricity, gas, heating, water supply and drainage, oil, natural gas, and other departments and contractors for pipeline laying.

Main Performance Characteristic:

  1. A closed-circuit system is adopted for the rotation system; the automatic variable system is adopted for push & pull clamping and walking and it is under load-sensitive control. An advanced hydraulic system raises more than 20% productivity, reduces about 50% heat, and saves more than 20% energy compared to the traditional one.
  2. The machine is equipped with a Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
  3. Four bar linkage luffing structure is adopted for the main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
  4. A wire-control walking system can ensure safety when the machine performs walk, transfer, and load & unload.
  5. The machine is equipped with φ76×3000mm or φ83×3000mm, and the machine body occupies a moderate area, meeting the requirement for high-efficiency construction in a small place.
  6. Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improves the reliability of the product performance and safety.
  7. Electric design is reasonable with a low failure rate, which is easy for maintenance.
  8. The steel track with rubber plate is adopted for crawlers, which can not only bear the high load but also satisfy walking on different roads.
  9. A rack and pinion system is adopted for thrust &pullback, which is good for high efficiency, long life, stable working, and maintenance is also convenient.

Request A Quote

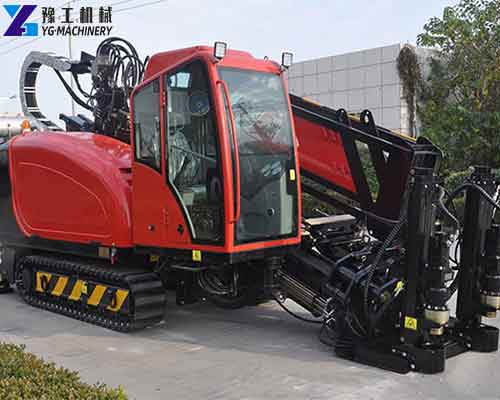

Directional Boring Machine Manufacturer
Directional Boring Machine Manufacturer

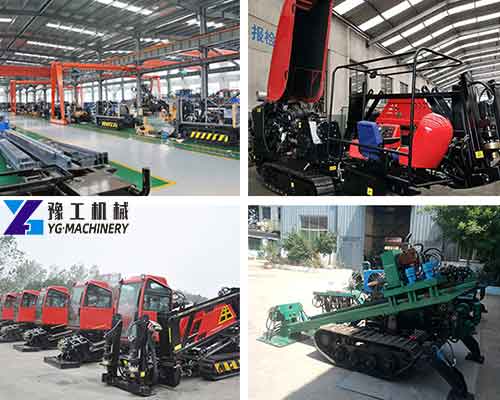

Horizontal Directional Drilling Machine Manufacturer
Horizontal Directional Drilling Machine Manufacturer

Directional Boring Machine for Sale – YG Machinery Manufacturer

At present, our horizontal directional drilling rigs have been sold to Russia, Australia, Cambodia, Indonesia, Malaysia, Myanmar, Philippines, Singapore, Thailand, Vietnam, Brazil, Peru, Argentina, Chile, and many other countries. We have also received feedback from many customers. It has the advantages of the high degree of automation, precision, high production efficiency, advanced performance, and high-efficiency non-excavation construction equipment, and so on. And we also have other types of drilling rigs, small water well drilling rigs, core drilling rigs, trailer mounted water well drilling rigs, crawler water well drilling rigs, DTH drilling rigs, rotary drilling rigs, diamond core drilling rigs, rock drills, backpack core drills, and other equipment. If you or your customers are interested in these machines, please contact us.【Whatsapp/Wechat/Phone/Skype】+8613613856800
