Core Drill Rig
In August 2018, an HZ core drill rig for sale in America from Henan YG Machinery. And just in the same month, another customer from Honduras also purchased this type of core drill rig. Both of them send us an inquiry from our official website after checking the detailed parameters on the website. We are so happy to cooperate with them, and they are also satisfied with our core drill rig.【Whatsapp/Wechat/Phone/Skype】+86 136 1385 6800

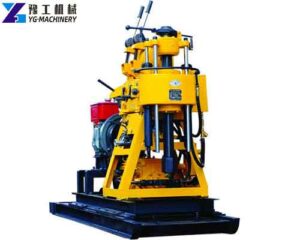

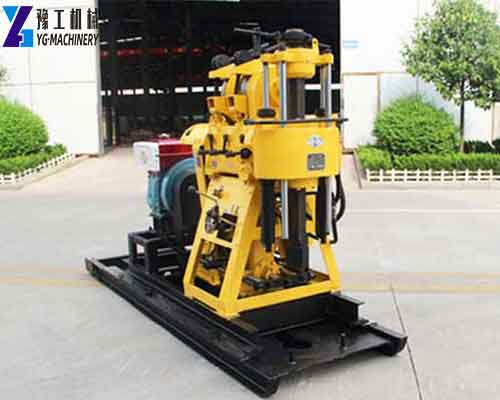

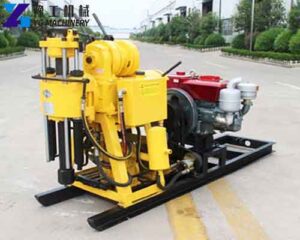

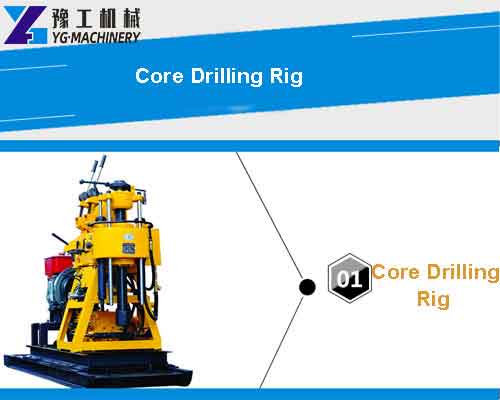

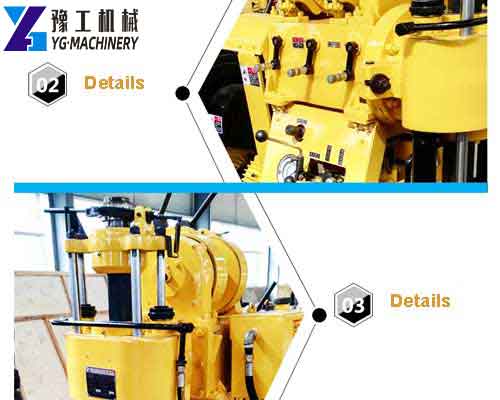

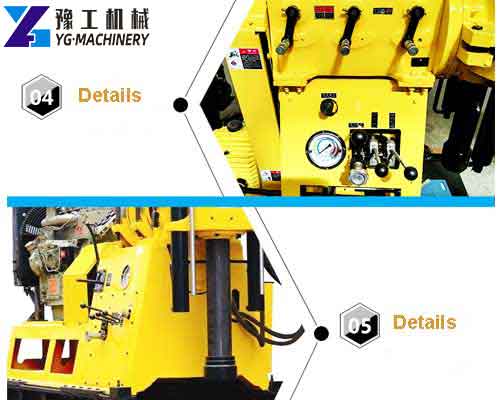

HZ Series Core Drill Rigs Details

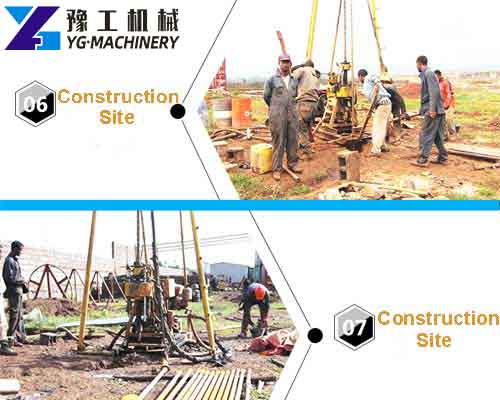

HZ series core drill rigs are flagship drilling rigs in YG because it has a very wide application like the construction of railways, water project, bridges, dam foundation, etc. And you can use it in geotechnical exploration, grouting hole drilling, core sampling, hole blasting, and water well drilling. With hydraulic automatic cylinder feed, you can save a lot of cost and labor by using this drilling rig drilling.
|
HZ Series Core Drill Rig for Sale |
|||
| Model | HZ-130Y/130YY | HZ-180Y/180YY | HZ-200Y/200YY |
| Drilling Depth (m) | 130 | 180 | 200 |
| Opening Hole Diameter (mm) | 220 | 220 | 352 |
| End Hole Diameter (mm) | 75 | 75 | 75 |
| Drill Angle (0) | 42-60 | 42-60 | 42-60 |
| Matching Power (kW) | 13.2 | 13.2 | 14.7 |
| Weight Without Power (kg) | 600/740 | 620/750 | 880/970 |
| Dimension (m) | 2.4*0.8*1.4 | 2.4*0.8*1.3 | 2.7*0.9*1.5 |
|
Vertical Shaft |
|||
| Speed (r/min) | 124/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke (mm) | 450 | 450 | 450 |
|
Winch |
|||
| Max. Pull Force (kg) | 2000 | 2100 | 2500 |
| Pull Speed (m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope Diameter (mm) | 9.3 | 9.3 | 12.5 |
| Roll Capacity (m) | 27 | 27 | 35 |
|
Drill Mast |
|||
| Rated Load (t) | 18 | 18 | 18 |
| Height (m) | 6.5 | 6.5 | 6.5 |
|
Mud Pump |
|||
| Flow (L/min) | 95 | 95 | 145 |
| Working Pressure | 1.2mpa | 1.2mpa | 2mpa |
| Reciprocating Times | 93 | 93 | 93 |
|
Hose |
|||
| Inlet Hose Diameter (mm) | 51 | 51 | 51 |
| Outlet Hose Diameter(mm) | 32 | 32 | 38 |
Core Drilling Rig Manufacturer – YG Machinery
If this one is not the one you are looking for, please find more like water well drilling and DTH drilling rigs in the primary navigation. Here I also present the detailed parameter of the HZ series drilling rig in case you need it. If you want to know more information, please feel free to contact us, and we will provide you with excellent-performance drilling rigs and first-class services.【Whatsapp/Wechat/Phone/Skype】+86 136 1385 6800
