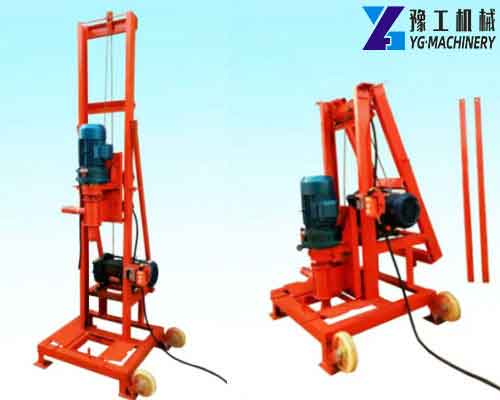

The small water well drilling rigs are undoubtedly the hottest products of YG Machinery. Our water well rigs have already been sold all over the world. Small water well drilling rigs are mainly used for drilling soft rocks such as soil and limestone. The advantage is that they can be drilled very quickly. If you are interested in our small water well drilling rigs, please don’t hesitate to contact us at any time, we will definitely reply to you as soon as possible.【Whatsapp/Wechat/Phone/Skype】+86 136 1385 6800

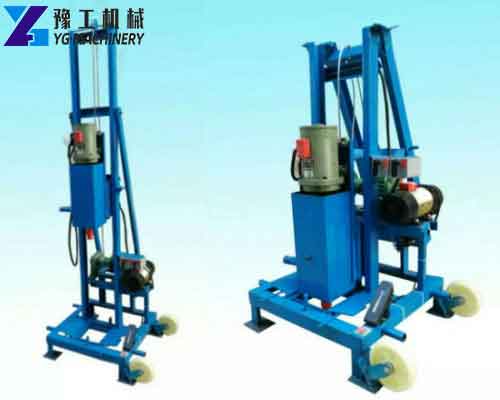

Portable Water Well Drilling Rigs Parameter:
| Model | HY-120 | HY-180 | HY-240 | HY-350 |
| Drill Hole Depth | 80m-100m | 80m-100m | 100M | 100m |
| Opening Hole Diameter | 80 – 200mm | 80m-200m | 0-240mm | 0–350mm |
| Drill Pipe Diameter and Length: | φ42mm, 1.5m | φ42mm, 1.5m | φ51mm, 1.5m | φ51mm, 1.5m |
| Motor Power | 1.5kw–2kw | 1.5kw–2kw | 4kw | 3kw |
| Pump Power | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
| Voltage | 220V | 220V | 220V | 380V |
| Lifting Force | 500kg | 500kg | 1000kg | |
| Size | 700mm*700mm*2900mm | 700mm*700mm*2500mm | 700mm*700mm*2500mm (can be folded) | 800mm*800mm*2700mm (can be folded) |
| Weight | 120kg | 120kg | 150kg | 250kg |
| Model | ZX-220 | ZX-280 | HY-500 |
| Drill Hole Depth | 120m | 120m | 120m |
| Opening Hole Diameter | 80-280mm | 120mm | 0-500mm |
| Drill Pipe Diameter and Length: | φ51mm, 1.5m | φ51mm, 1.5m | Φ65mm, 2m |
| Motor Power | 4kw | 4kw | 5.5kw |
| Pump Power | 2.2kw | 2.2kw | 5.5kw |
| Voltage | 220V | 220V | 380V |
| Lifting Force | 800kg | 800kg | 1000kg |
| Size | 800mm*700mm*2500mm | 800*700*2500MM | 1000mm*1500mm*2000mm |
| Weight | 200kg | 200kg | 600kg |
Routine Maintenance:
- The motor part should be handled carefully during transportation of the rig to avoid rain and splashing water.
- The mortar wire connector must not be connected to electricity.
- Often check whether the wire rope is replaced.
- The drill wire should be lubricated with oil before and after use to prevent rain.
- The motor cannot be overloaded for a long time.
- Check the circuit and transformer insurance when the motor is not rotating.
Water Well Drilling Rig Manufacturer:
Because of Professionalism, Excellence
Henan YG Machinery Co., Ltd is a professional machinery manufacturer in Henan, specializing in road machinery, environmental protection machinery, tunnel slope support equipment, prestressed equipment, highways, subway culverts, light rail high-speed rail, mining resource mining, coal mines, and non-coal mines. Development and sales in the field, is a machinery manufacturer integrating R&D, sales, online, and office.
The company takes “ quality for survival, reputation for development” as its core value. Through our professional level and unremitting efforts, we provide competitive products and services to corporate customers and consumers and are committed to making our products go abroad and sell to the world. Currently, Henan YG Machinery has about 180 employees and is headquartered in Henan. Its business covers the whole country and more than 17 countries and regions around the world. The company takes reform as the driving force, takes management as the foundation, takes science and technology as the guide, and takes culture as the soul. It continuously strengthens and improves enterprise management, and promotes scientific and modern management. Over the years, the competitiveness of various products of the company has been significantly enhanced, and the competition is fierce. It can continue to develop rapidly in the market environment. All employees of the company are looking forward to sincere cooperation with friends from all walks of life to make achievements together.
